Component Description
WARNING: This page is about a different variant/trim than selected.
Intake Sensor

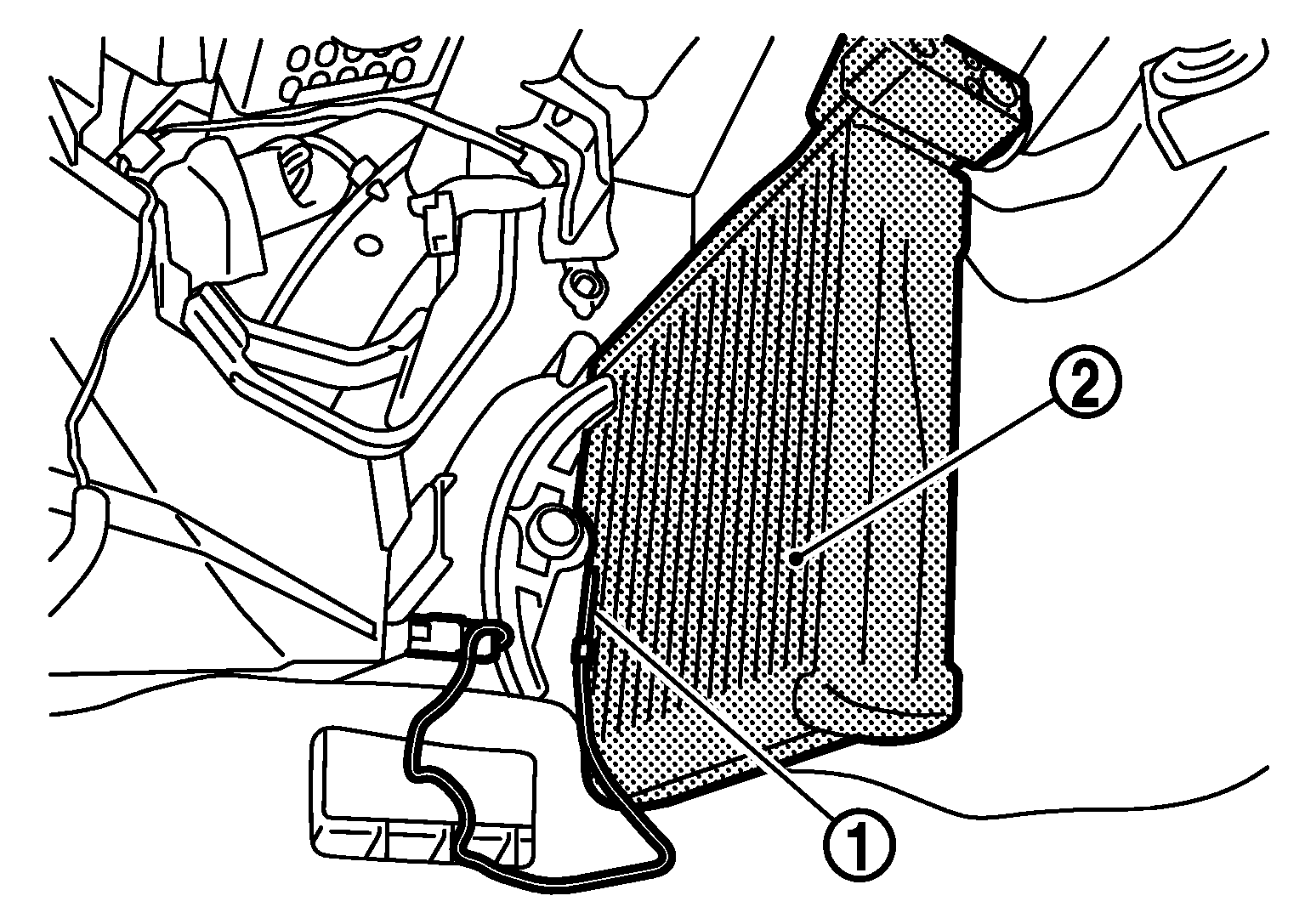

The intake sensor (1) is located on the evaporator. It converts air temperature after it passes through the evaporator (2) into a resistance value which is then input to the unified meter and A/C amp.
