Exploded View

WARNING: This page is about a different variant/trim than selected.

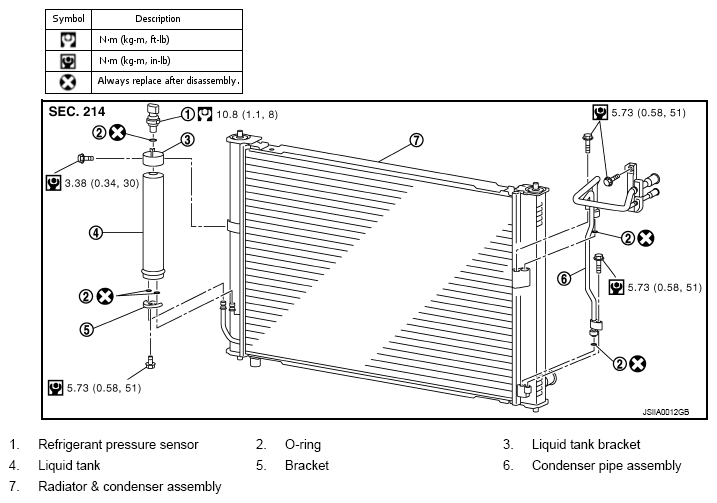

Fig 1: Exploded View Of Refrigerant Pressure Sensor With Torque Specifications

G08459010

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
