Light Reminder Warning Chime
›
Timing Chart
Timing Chart

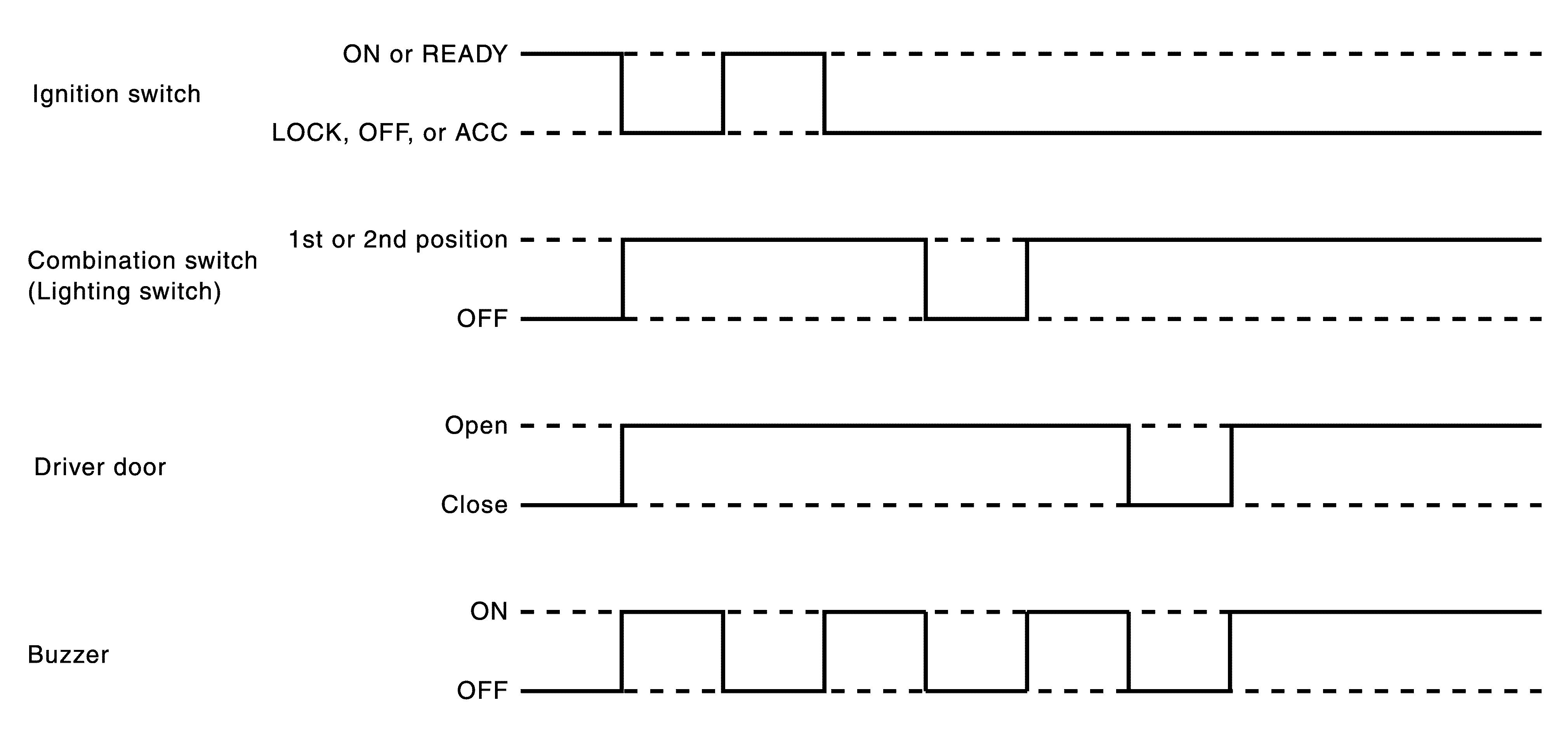

Fig 1: Driver Door, Buzzer, Ignition And Combination Switch Timing Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
