Power Control System (Power Distribution System)
›
System Description
›
System
›
Power Distribution System
›
POWER DISTRIBUTION SYSTEM: System Diagram
POWER DISTRIBUTION SYSTEM: System Diagram

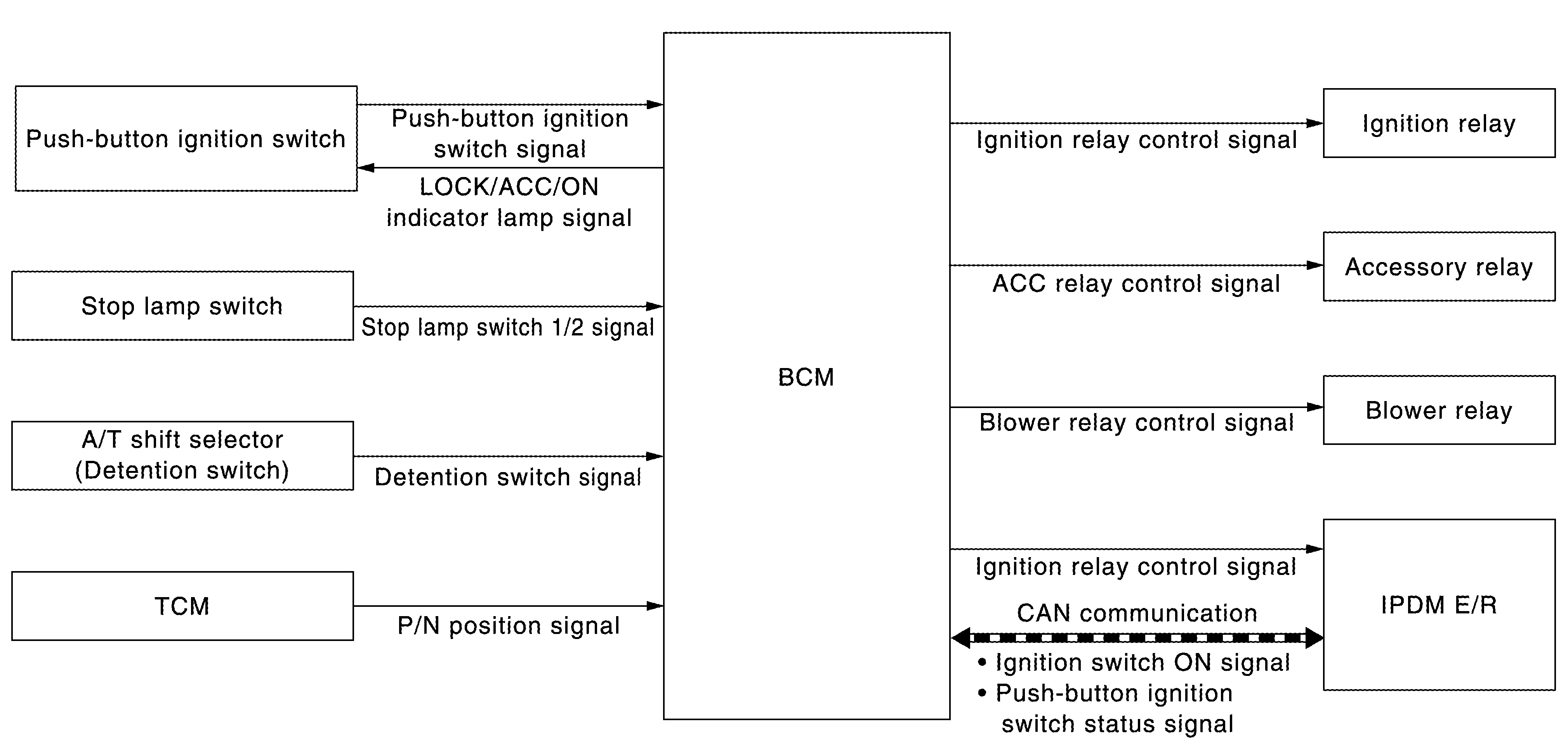

Fig 1: Power Distribution - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
