Repair and Diagnosis
›
Engine Mechanical
›
Cooling Fan
›
Engine Cooling System
›
Removal And Installation
›
Radiator
›
Exploded View
Exploded View

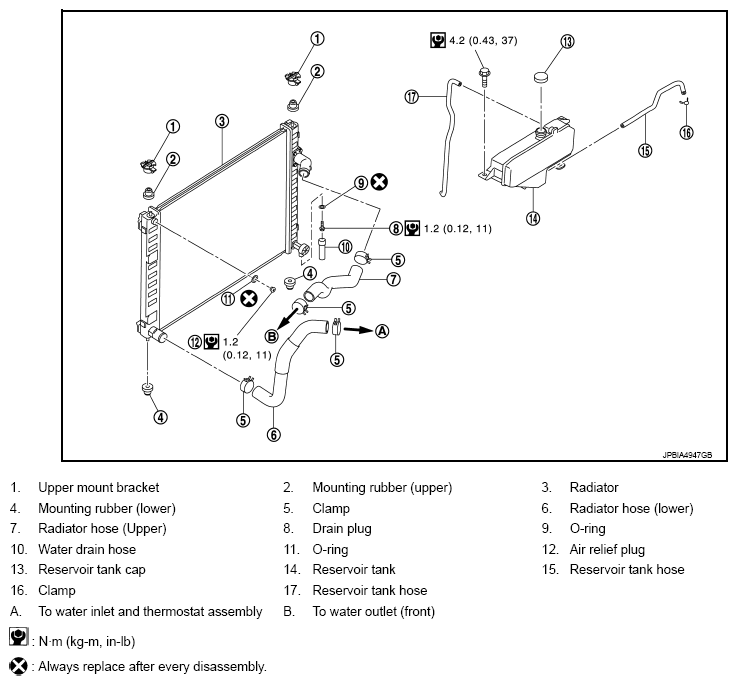

Fig 1: Exploded View Of Radiator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
