Engine Lubrication System Schematic

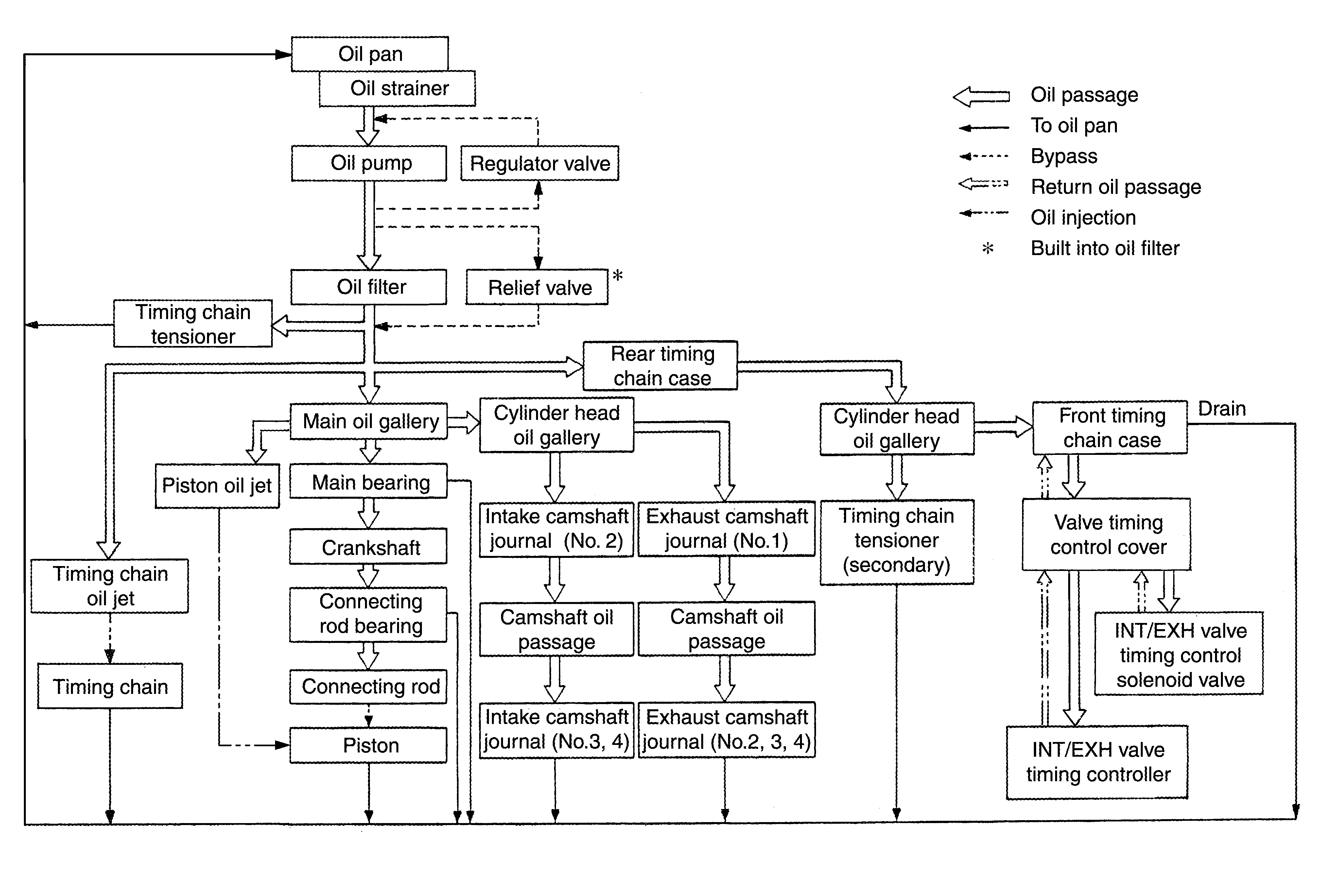

Fig 1: Engine Lubrication System Schematic
G08248532Courtesy of NISSAN NORTH AMERICA, INC.
