Cylinder Block
›
Exploded View
Exploded View

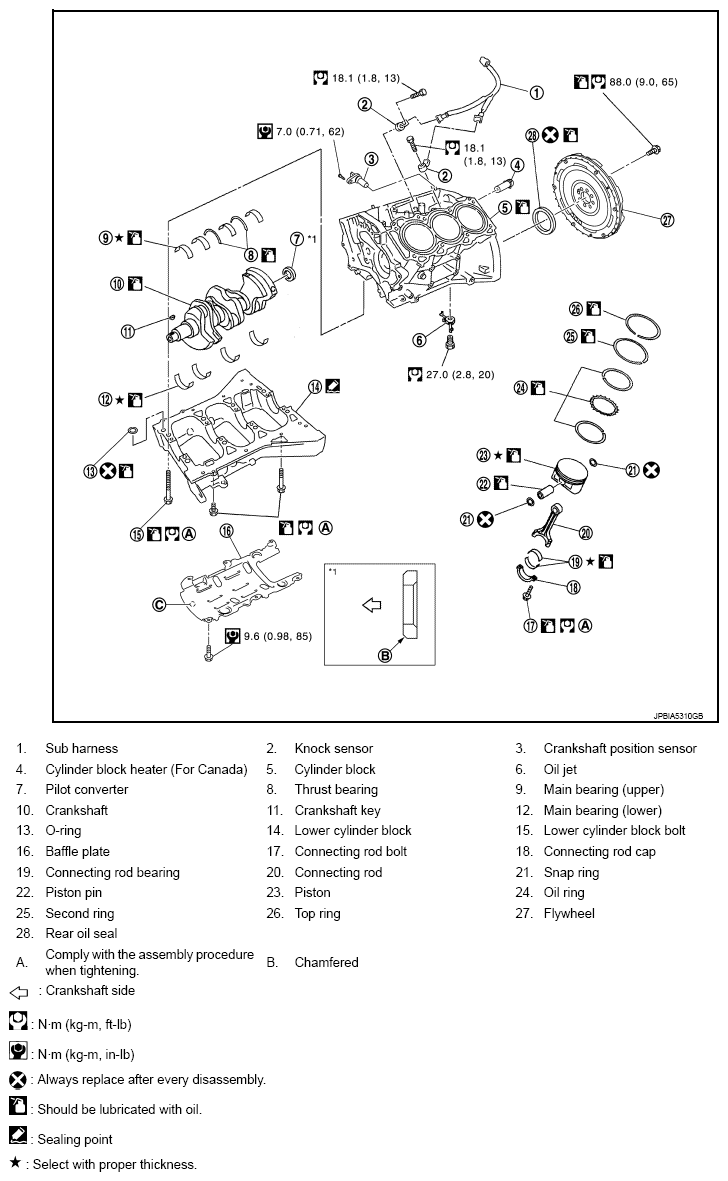

Fig 1: Exploded View Of Cylinder Block With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
