System - Basic Engine Control System

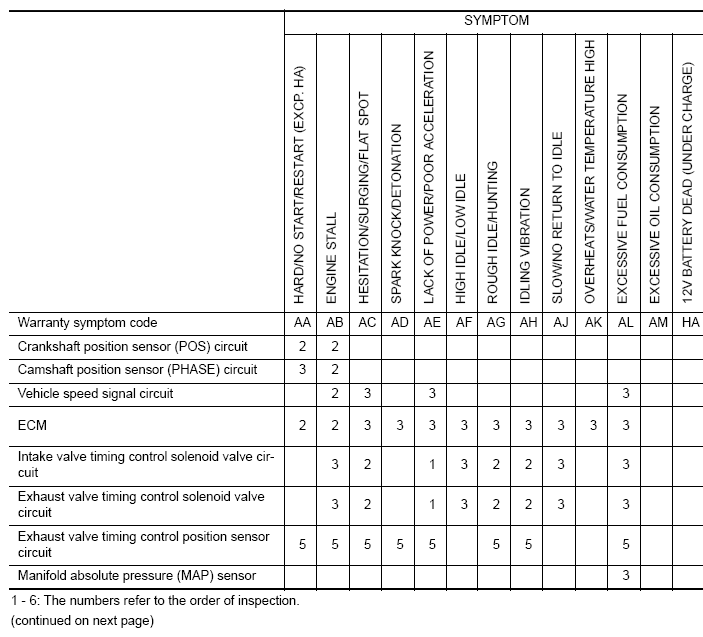

Fig 1: Engine Control System Symptom Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

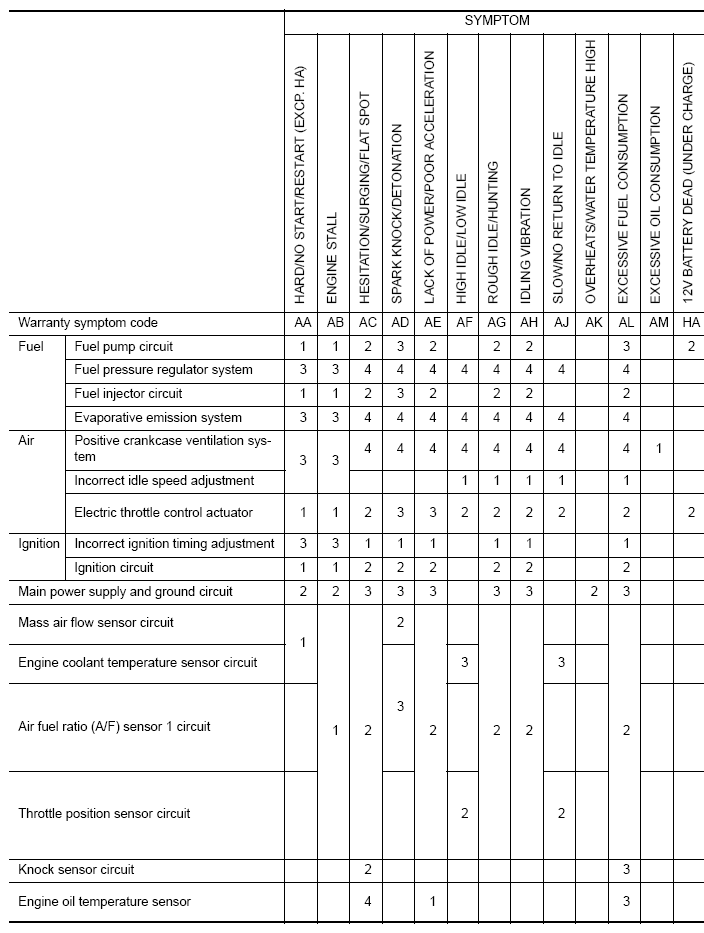

Fig 2: Engine Control System Symptom Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
