Engine Control System - Introduction
›
DTC/Circuit Diagnosis
›
Trouble Diagnosis - Specification Value
›
Diagnosis Procedure
›
Overall Sequence
Overall Sequence

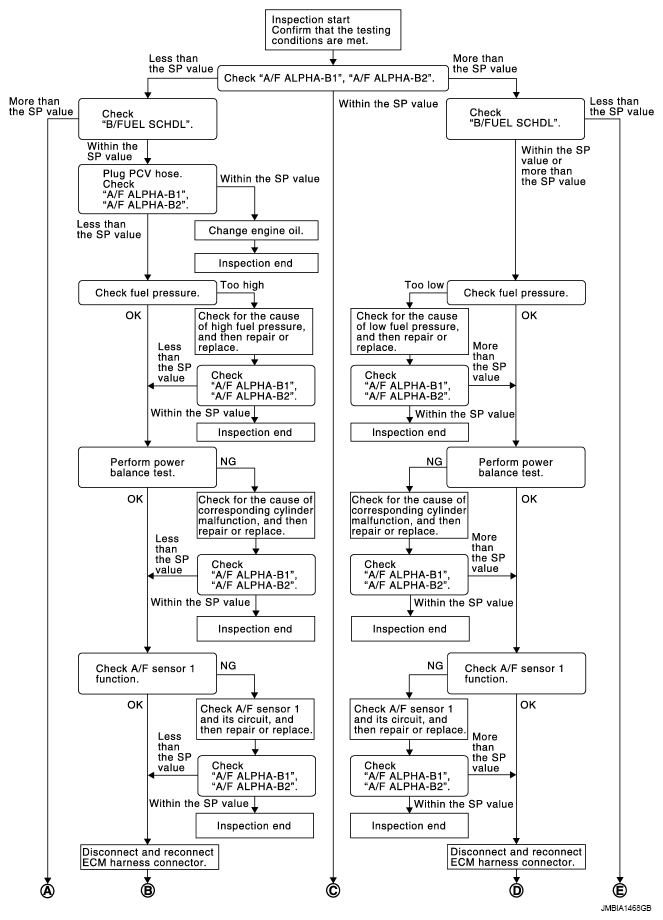

Fig 1: Trouble Diagnosis Flow Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

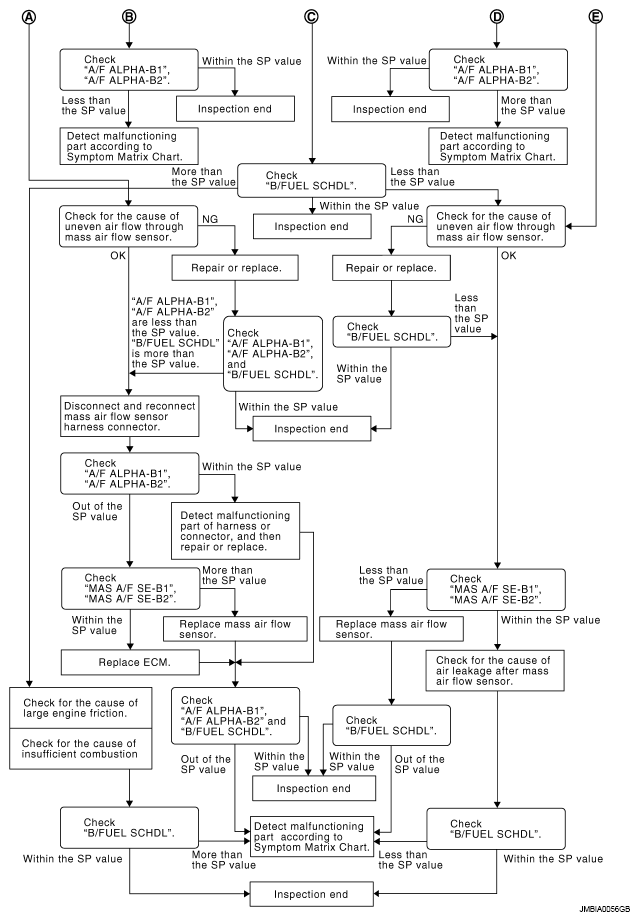

Fig 2: Trouble Diagnosis Flow Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
