Hybrid Battery System
›
Removal And Installation
›
Cooling System
›
Exploded View
Exploded View

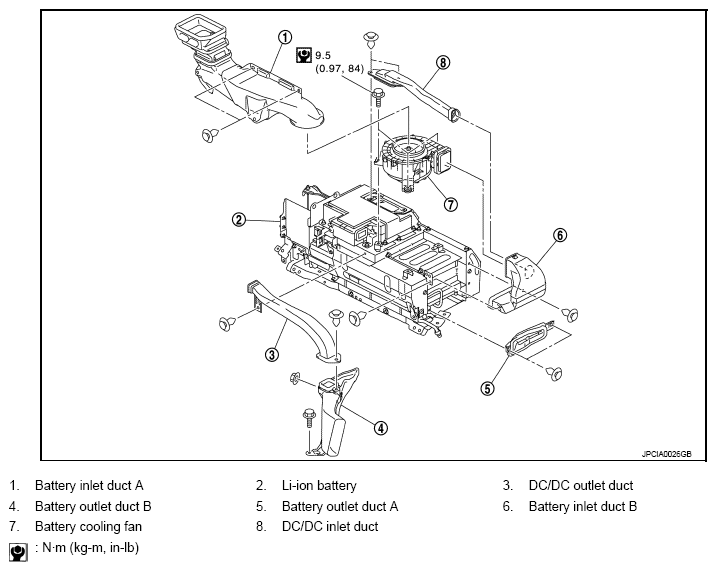

Fig 1: Exploded View Of Cooling System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
