Circuit Diagram: Notes

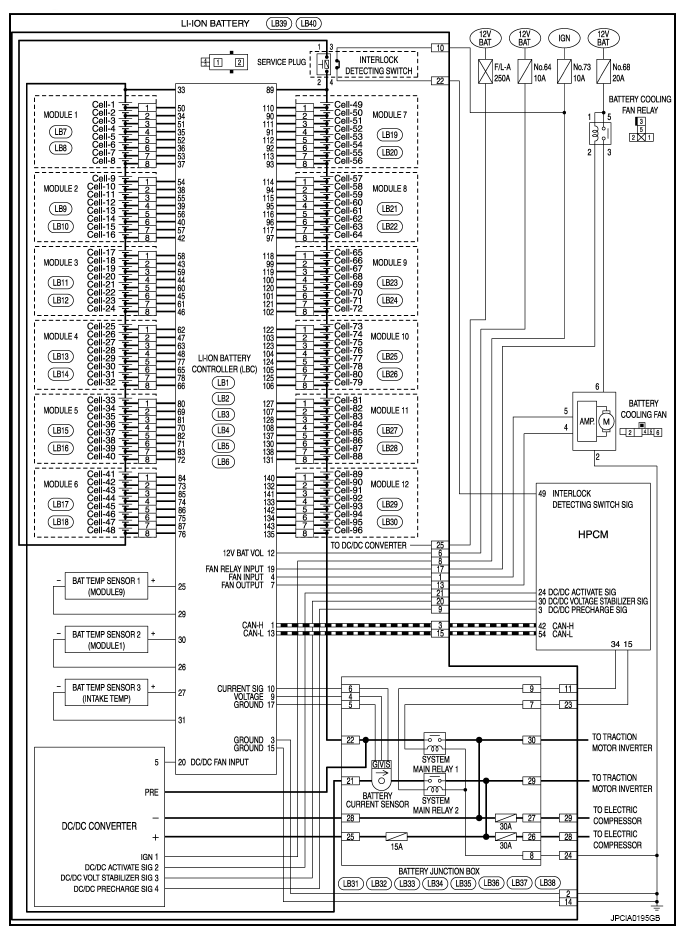

Fig 1: Battery Cooling Control - Circuit Diagram
G08255821Courtesy of NISSAN NORTH AMERICA, INC.

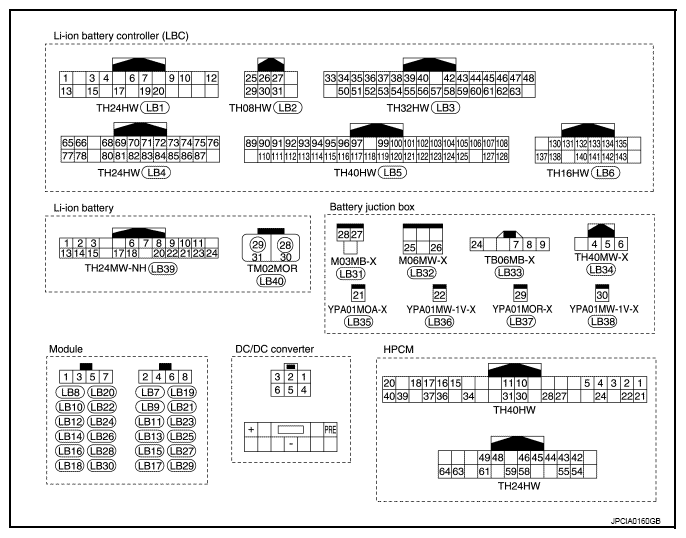

Fig 2: Battery Cooling Control Connector Terminal Identification
G08255822Courtesy of NISSAN NORTH AMERICA, INC.
