Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt Control System
›
System Description
›
System
›
System Diagram
System Diagram

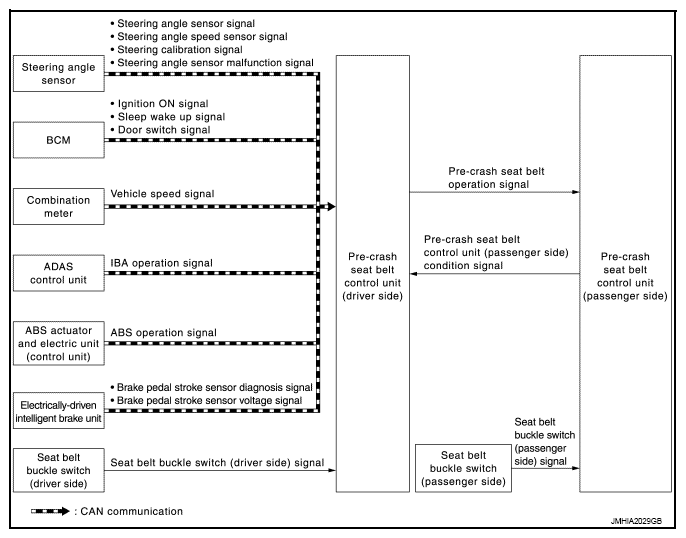

Fig 1: Seat Belt Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
