Rear Suspension Assembly
›
Exploded View
Exploded View

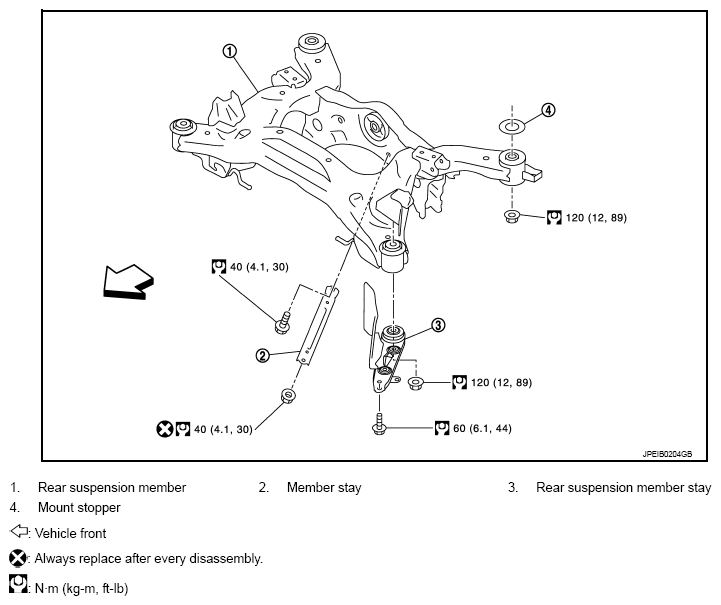

Fig 1: Exploded View Of Rear Suspension Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
