Home
›
Infiniti
›
2012
›
M35h
›
Repair and Diagnosis
›
Suspension
›
Wheel Alignment
›
Rear Suspension
›
Removal And Installation
›
Toe Control Link
›
Exploded View
Exploded View

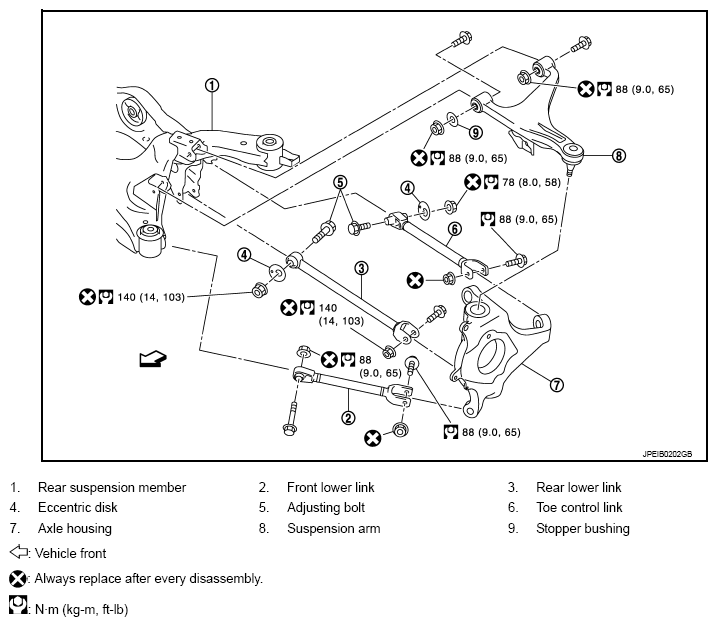

Fig 1: Exploded View Of Toe Control Link With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
