FixVault
Home
›
Infiniti
›
2012
›
M35h
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Removal And Installation
›
Oil Pan
›
Exploded View
Exploded View

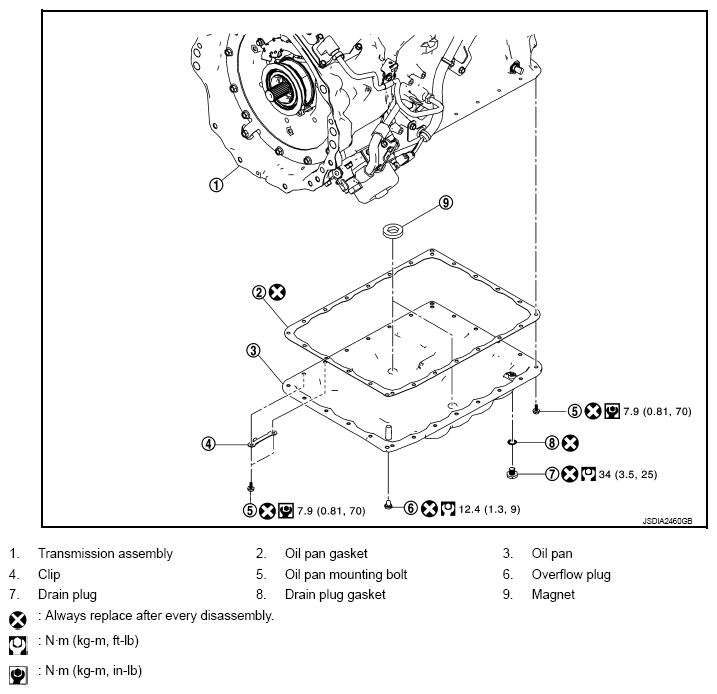

Fig 1: Exploded View Of Oil Pan With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
