Data Monitor

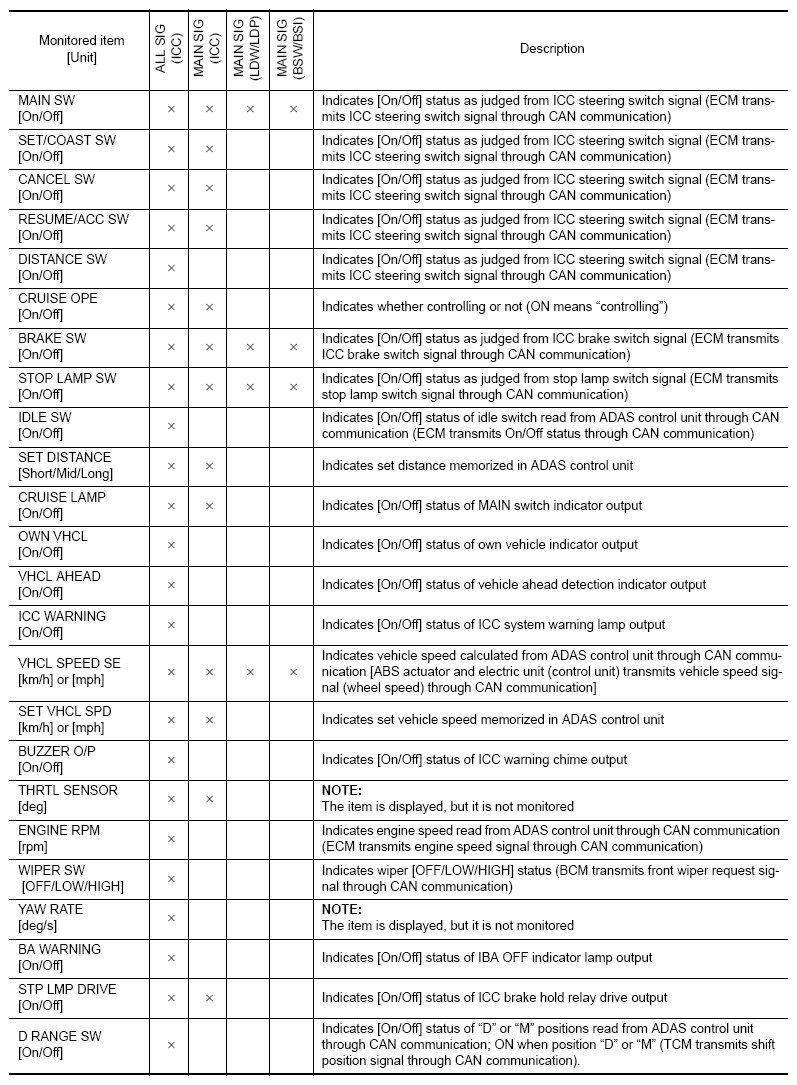

Fig 1: Identifying Self Diagnostic Result Data Monitor Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

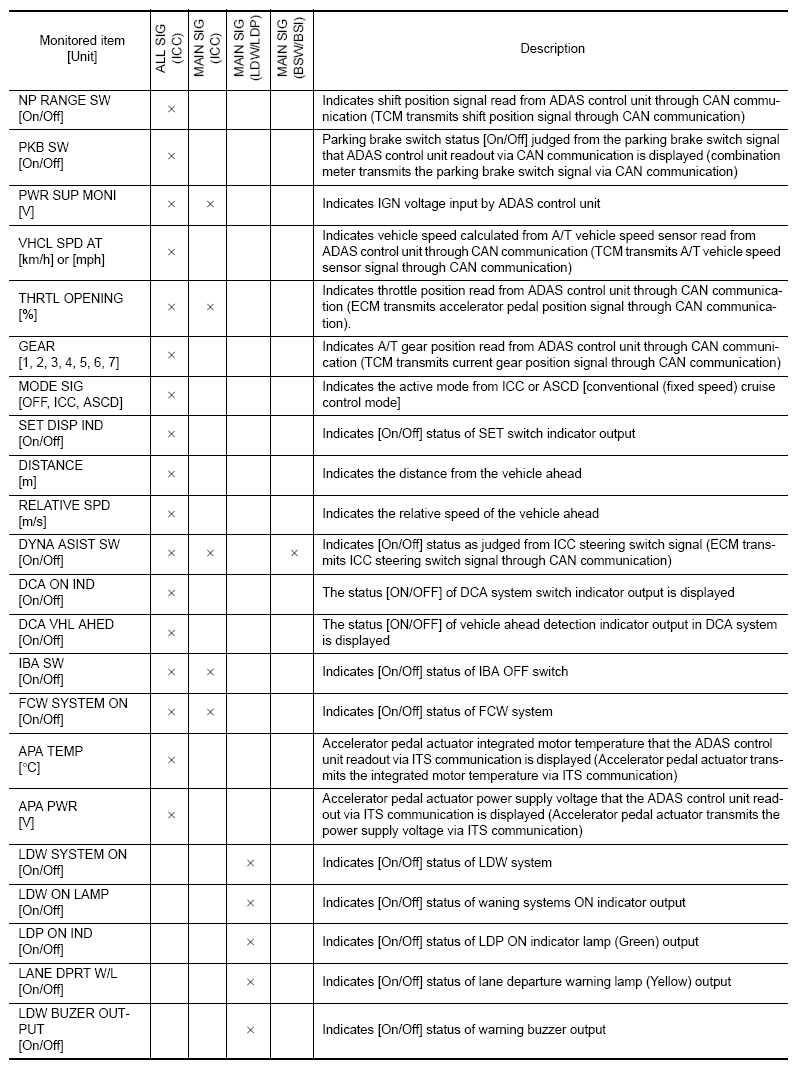

Fig 2: Identifying Self Diagnostic Result Data Monitor Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

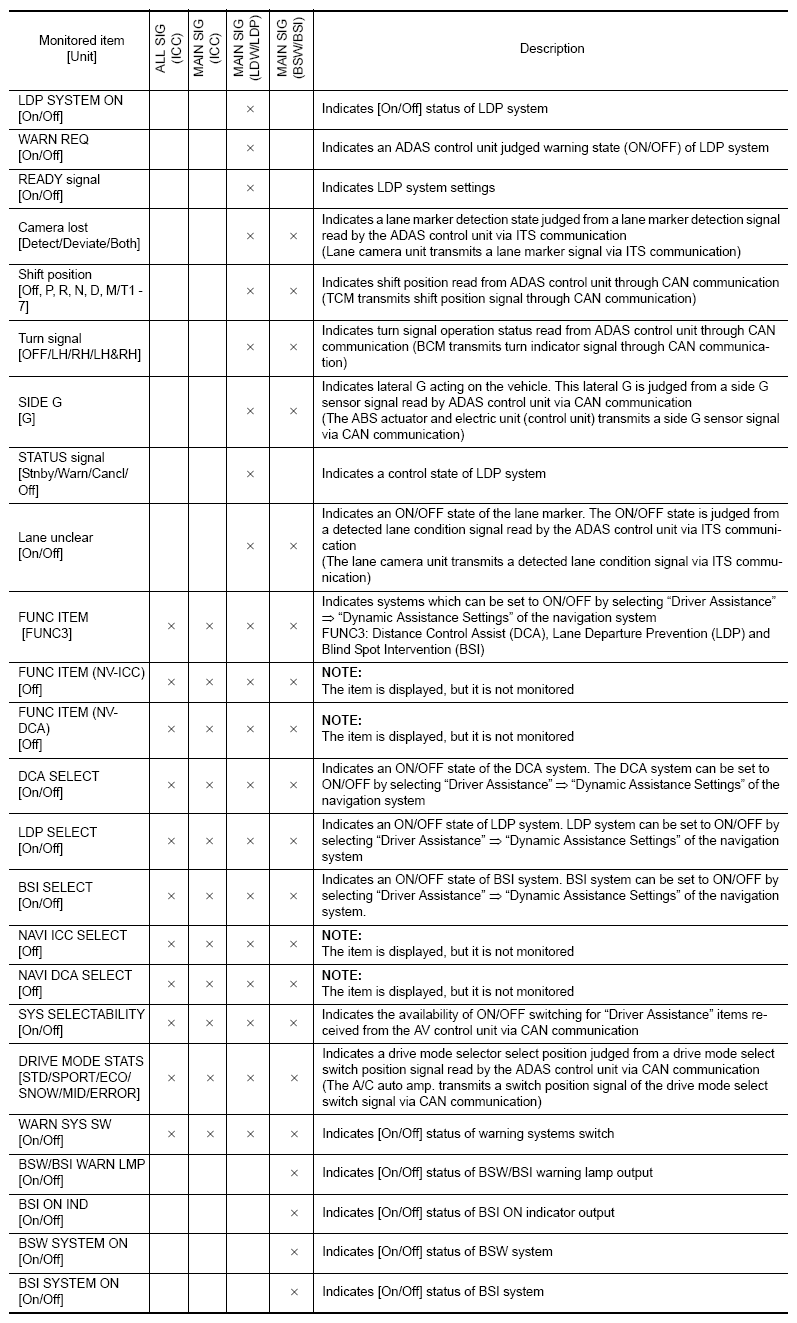

Fig 3: Identifying Self Diagnostic Result Data Monitor Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
