System Description
›
System
›
Multi Av System
›
MULTI AV SYSTEM: System Diagram
MULTI AV SYSTEM: System Diagram

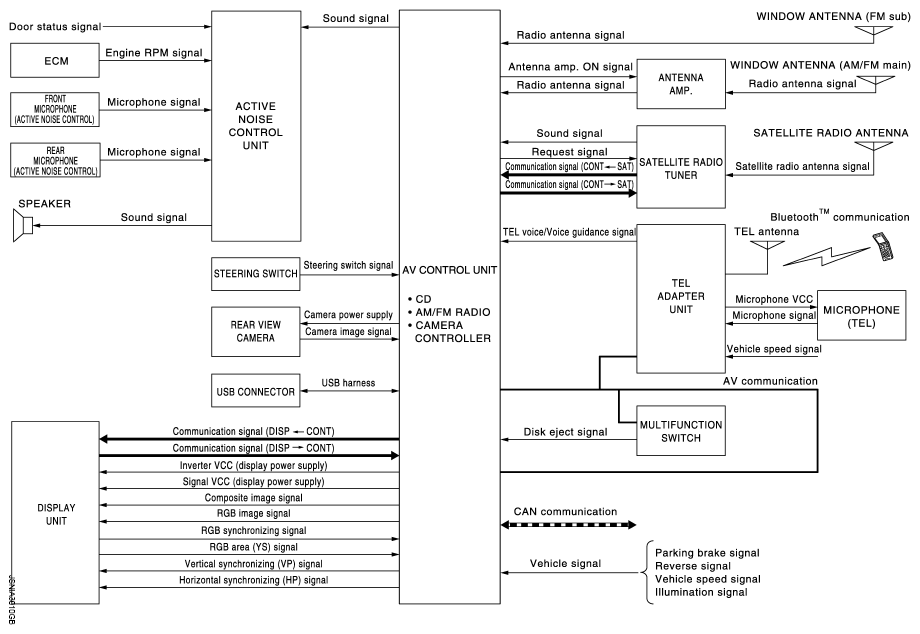

Fig 1: Multi AV System Diagram
Courtesy of NISSAN DIESEL MOTOR CO., LTD.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
