System Description
›
System
›
Seat Synchronization Function
›
SEAT SYNCHRONIZATION FUNCTION: System Diagram
SEAT SYNCHRONIZATION FUNCTION: System Diagram

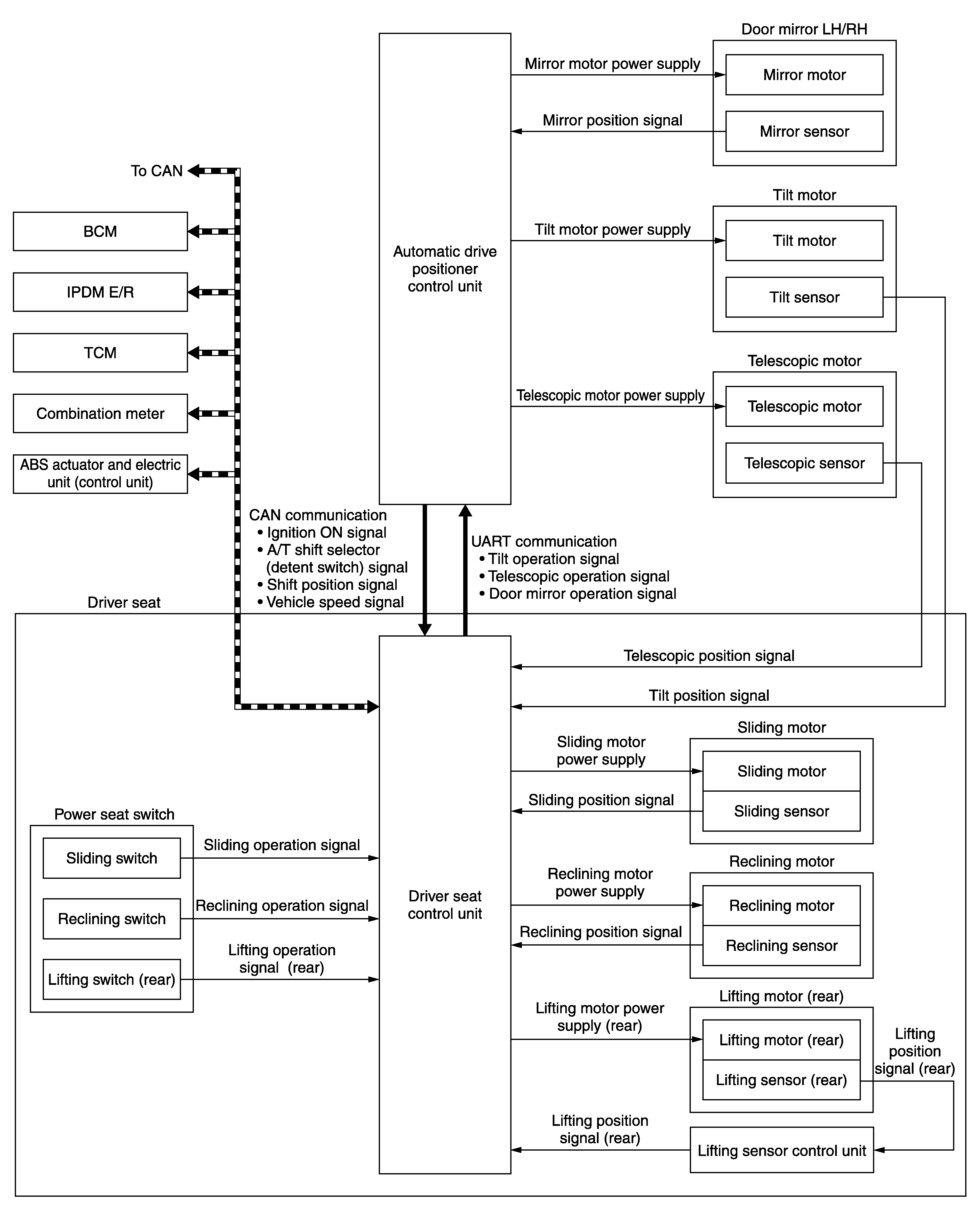

Fig 1: Seat Synchronization Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
