Operation Characteristics

Active Trace Control helps enhance the transition from braking into and then accelerating out of corners. Active Trace Control utilizes the vehicle's VDC system to help improve cornering feel by automatically applying brakes, or smoothening engine torque characteristics while accelerating. Furthermore, Active Trace Control will apply selective braking to help create increased steering response in S turns. For example, if driving through an S-turn that starts with steering to the right, the right-side brakes are engaged to create a yaw moment and help turn the vehicle.

Fig 1: Identifying Overview Of Active Stability Assist System Graph

Courtesy of NISSAN NORTH AMERICA, INC.

• Brake control amount and engine output are controlled according to steering operation status by the driver and vehicle cornering status.

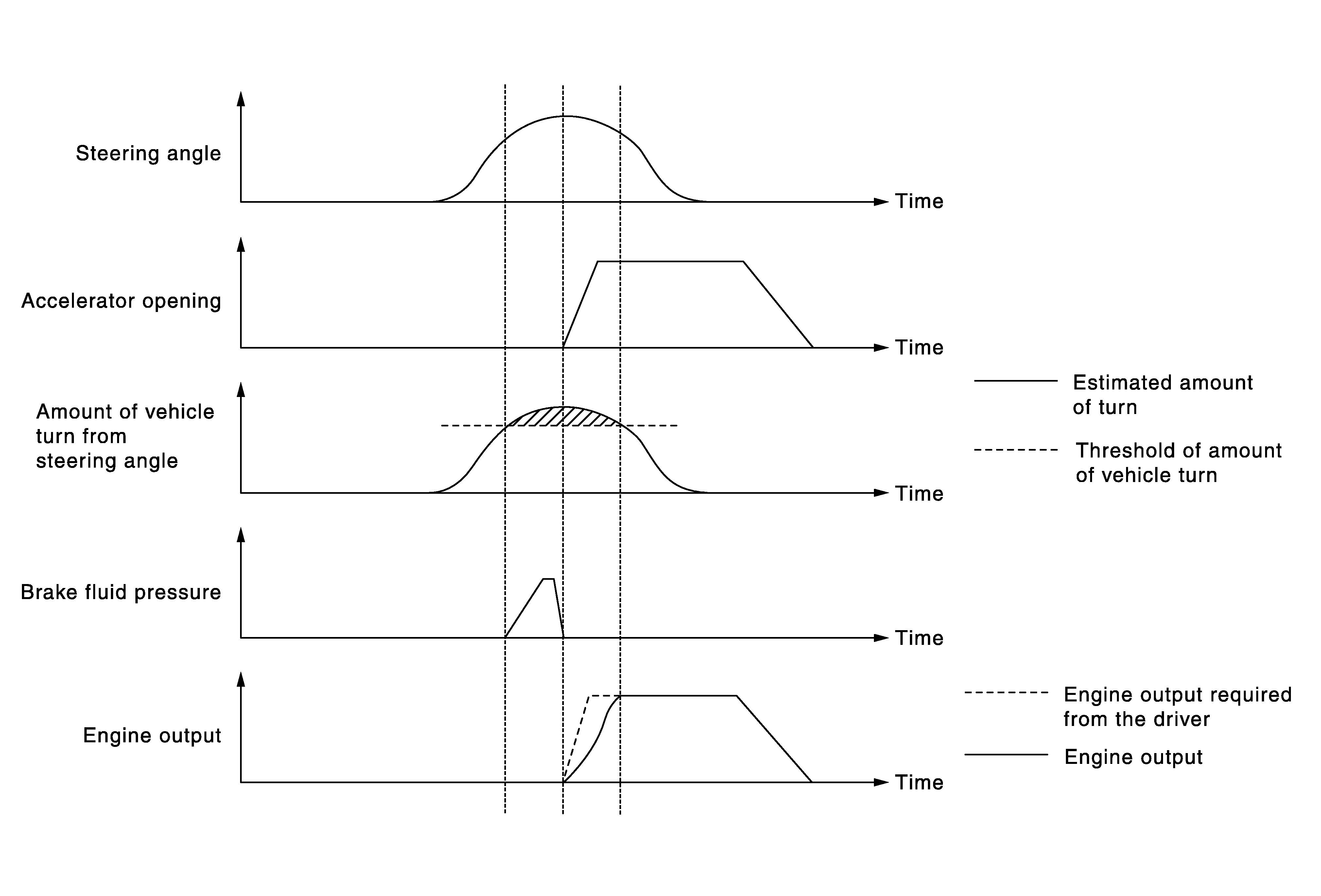

  Fig 2: Identifying Brake Control Amount And Engine Output Versus Time Graph

  Courtesy of NISSAN NORTH AMERICA, INC.
• By preventing a sudden torque change, vehicle behavior moderates. As a result, accelerator pedal operation by the driver is improved.

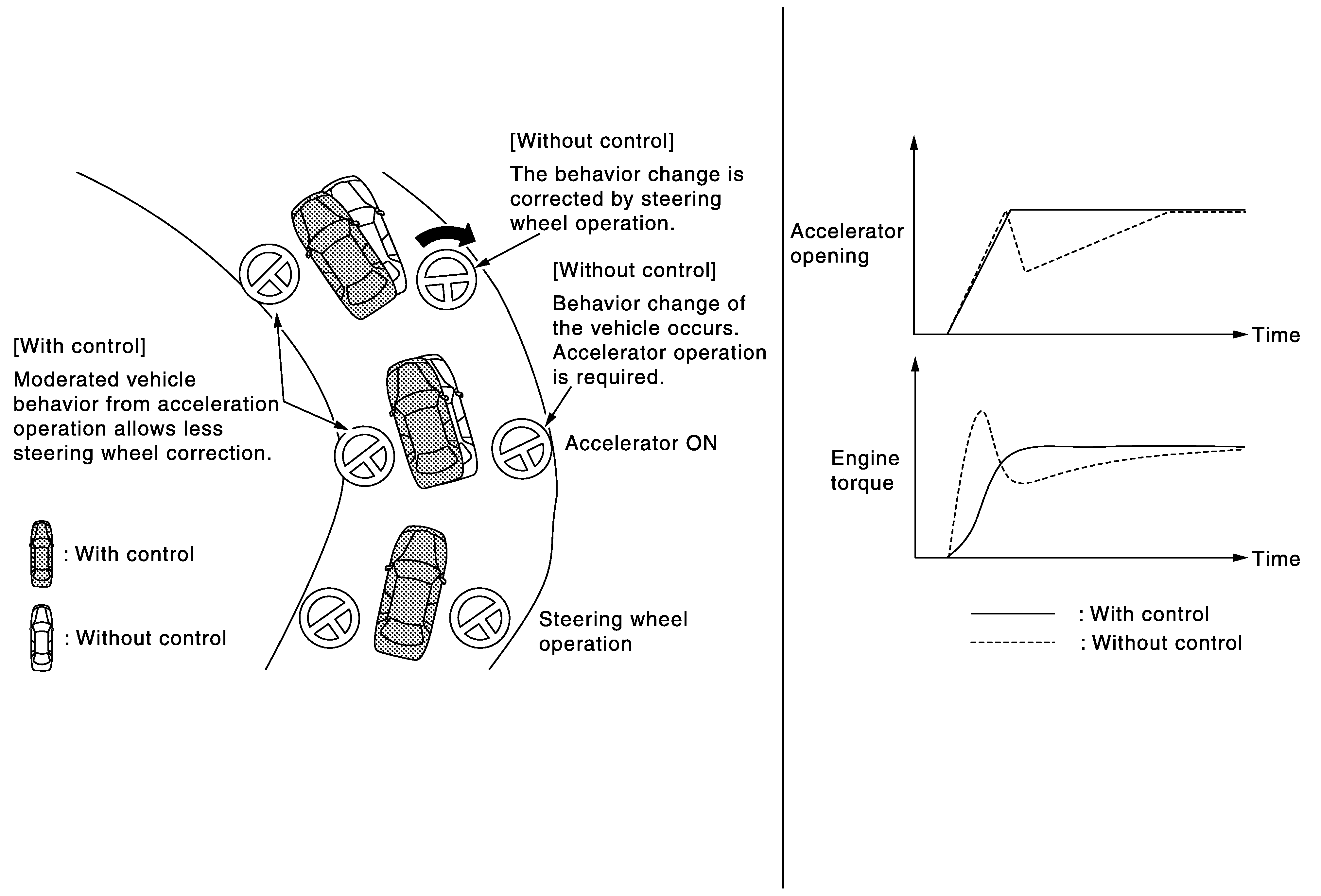

  Fig 3: Identifying Accelerator Opening And Engine Torque Versus Time Graph

  Courtesy of NISSAN NORTH AMERICA, INC.
