ECM Connector End View (F102)
ECM Connector End View (F102)

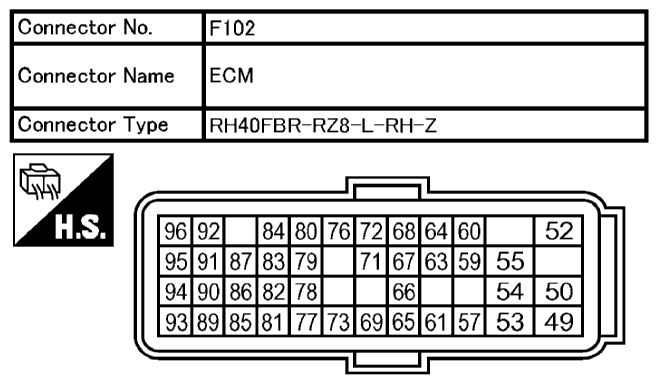

Fig 1: ECM Connector End View (F102)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
