ECM Connector End View (F111)
ECM Connector End View (F111)

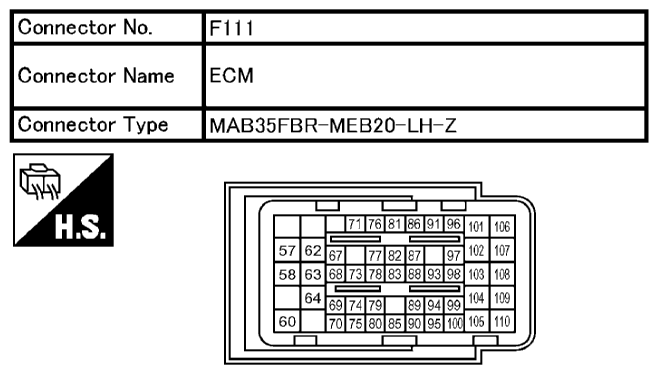

Fig 1: ECM Connector End View (F111)
Courtesy of NISSAN NORTH AMERICA, INC.
