RELAY CONTROL SYSTEM: System Diagram

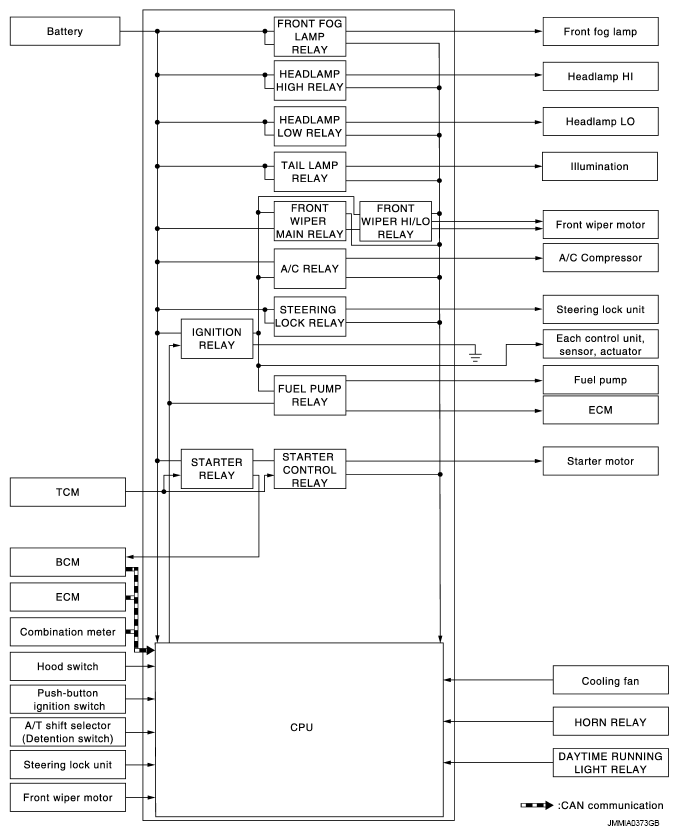

Fig 1: Identifying Relay Control System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Steering lock relay and steering lock unit, as shown in the system diagram above, are for models with steering lock unit only.
