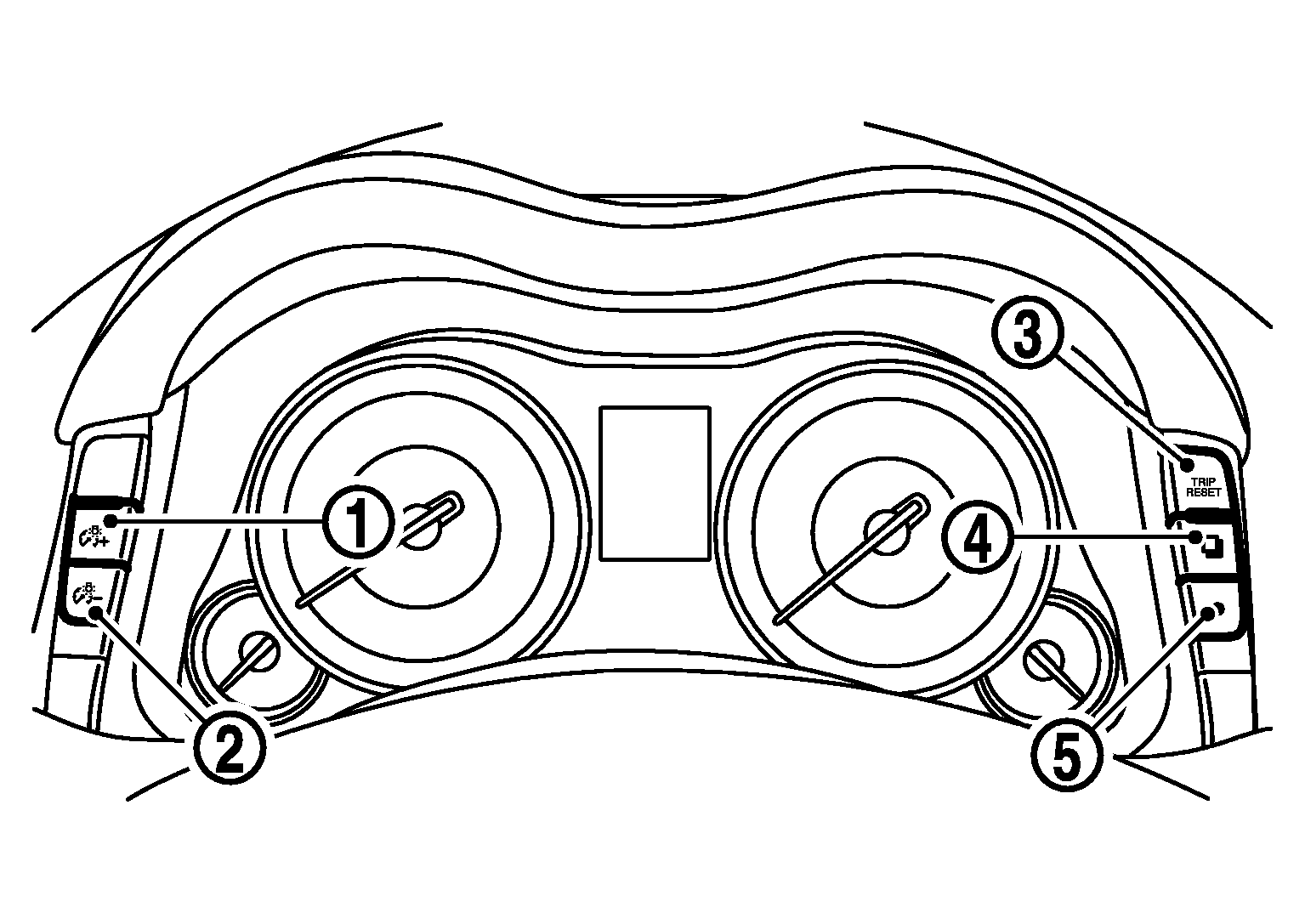

| Meter control switch |
Illumination control switch (+) (1) |
Press |
An illuminance level of the back light of the combination meter can be adjusted. |
| Illumination control switch (-) (2) |
| Trip reset switch (3) |
- The trip meter can be switched between A and B.
- Trip meter A/B can be reset by pressing and holding the trip reset switch.
|
| Enter switch (4) |
- The information display screen can be switched.
- The item indicated on the information display can be confirmed.
|
| Select switch (5) |
When plural items are shown on the information display, a selected item can be changed to the other item. |
