Driver Welcome Function

BCM transmits a meter ring illumination request signal to the illumination meter when all the following operational conditions are satisfied. When receiving the meter ring illumination request signal from BCM via CAM communication, the combination meter increases illumination brightness of the combination meter to the set brightness level in stages. After a certain period of time, the meter illumination gradually dims to be turned OFF.

Operational condition

Ignition switch

LOCK position

Driver side door

Open→Close⁽¹⁾

⁽¹⁾	Close the driver side door with the intelligent key left inside the vehicle.

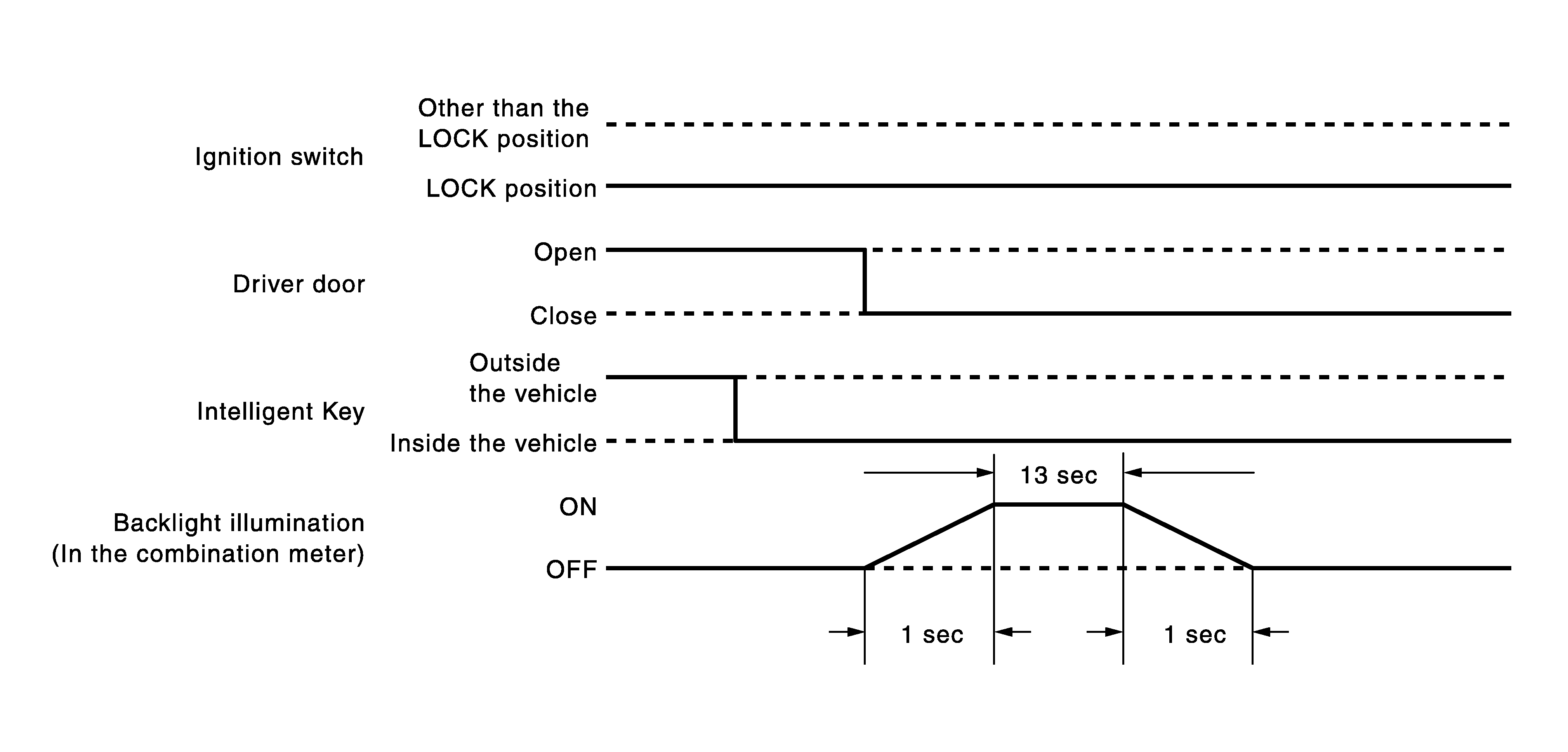

Timing Chart

Fig 1: Identifying Timing Chart

Courtesy of NISSAN NORTH AMERICA, INC.
