Starting System
›
Basic Inspection
›
Diagnosis And Repair Work Flow
›
Work Flow
›
Overall Sequence
Overall Sequence

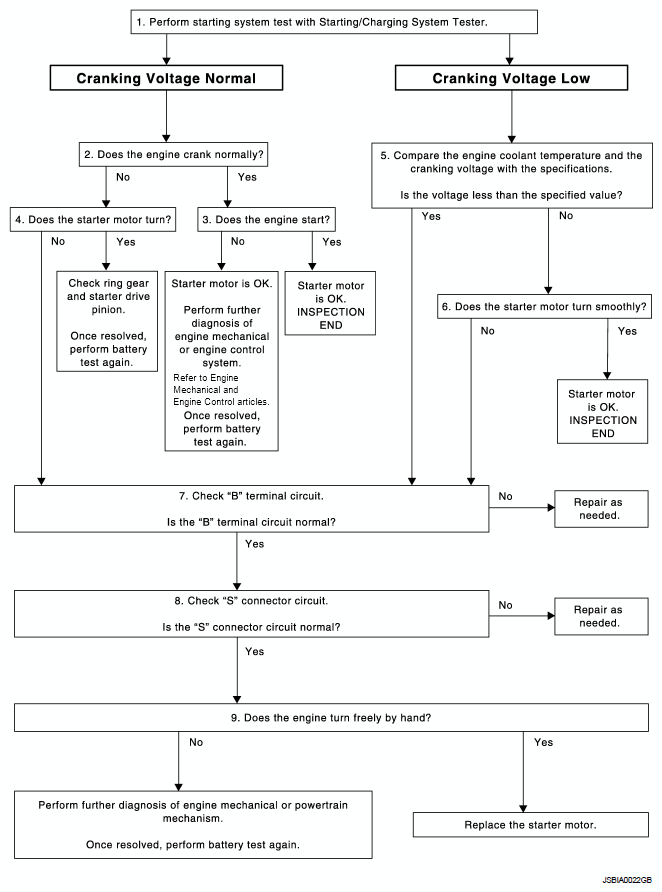

Fig 1: Identifying Diagnosis And Repair Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
