Component Inspection

  1. CHECK VVEL ACTUATOR MOTOR RELAY
    1. Turn ignition switch OFF.
    2. Remove VVEL actuator motor relay.
    3. Check the continuity between VVEL actuator motor relay terminals under the following conditions.
      Terminal Condition Continuity
      3 and 5 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace VVEL actuator motor relay.

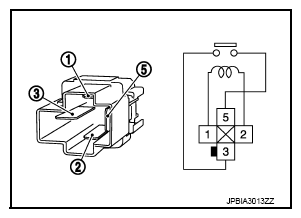

      Fig 1: Identifying Relay Terminals
      G08649262Courtesy of NISSAN NORTH AMERICA, INC.
