Engine Control System - Introduction
›
System Description
›
System
›
Engine Control System
›

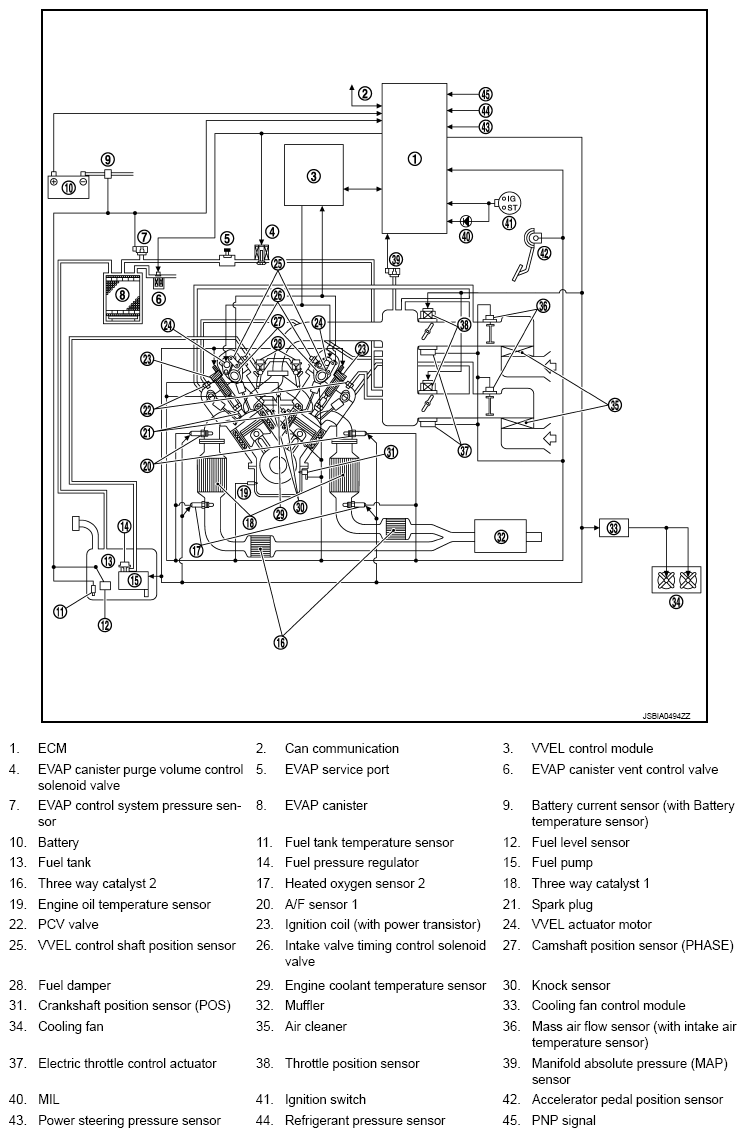

ENGINE CONTROL SYSTEM: System Diagram
ENGINE CONTROL SYSTEM: System Diagram
Fig 1: Identifying Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
