Exploded View

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor.

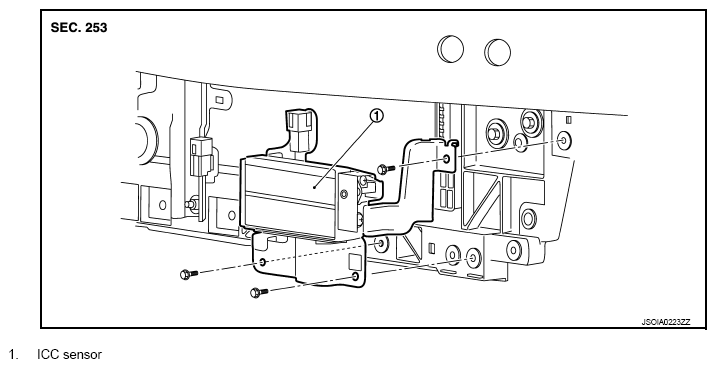

Fig 1: Exploded View Of ICC Sensor
G08893539Courtesy of NISSAN NORTH AMERICA, INC.
