COMBINATION SWITCH READING SYSTEM: System Diagram

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

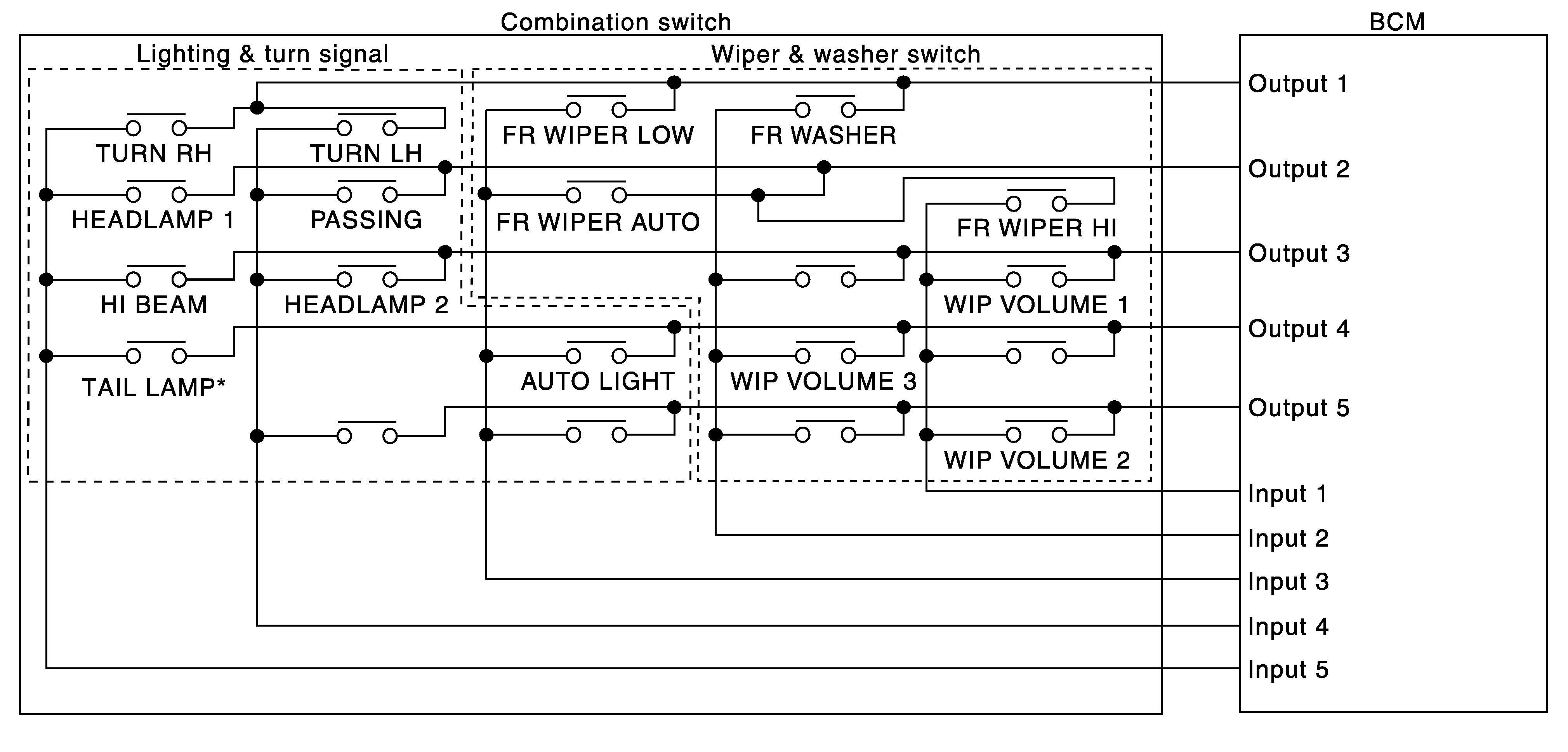

Fig 1: Combination Switch Reading System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
