Data Monitor

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

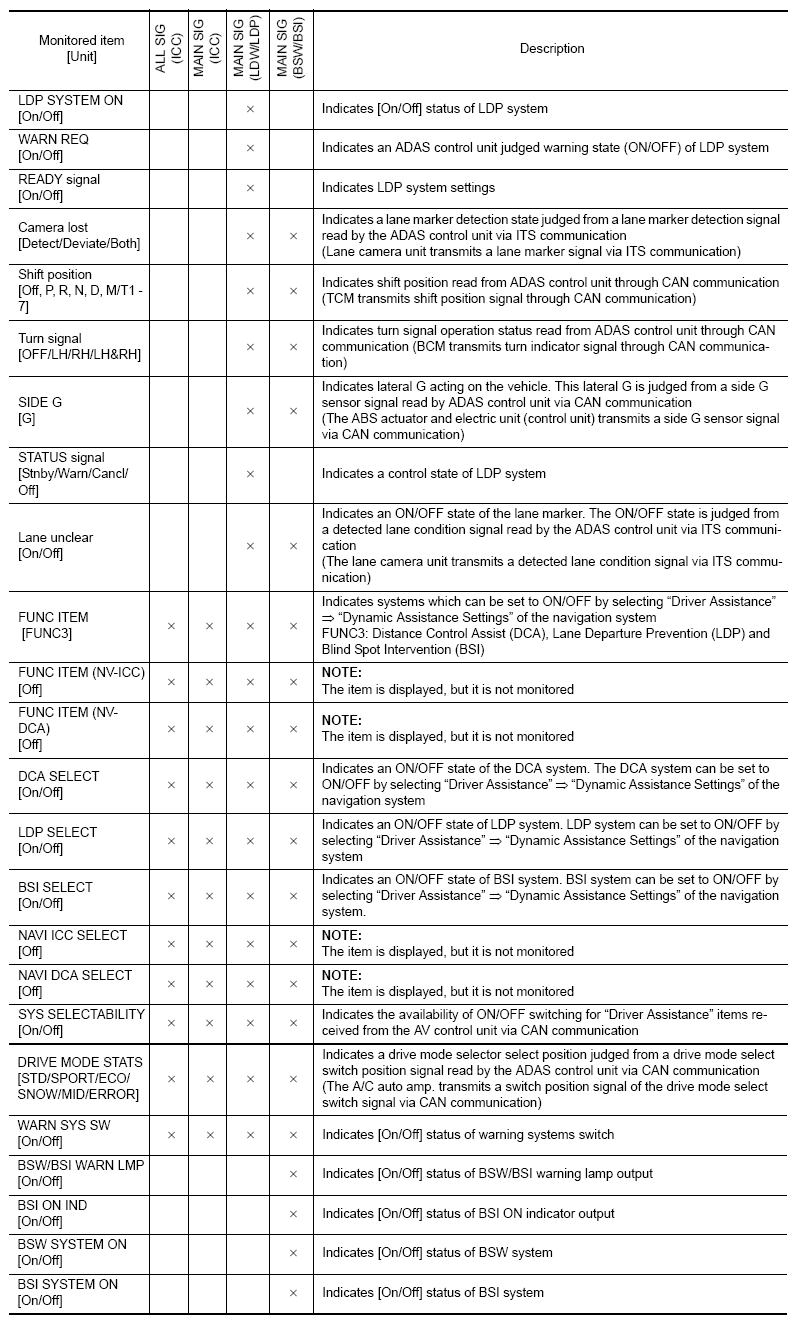

Fig 1: Self Diagnostic Result Data Monitor Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Self Diagnostic Result Data Monitor Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Self Diagnostic Result Data Monitor Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
