Section 25 (Security Control System)
›
Wiring Diagram
›
NVIS
›
Connector Terminal Identification
Connector Terminal Identification
WARNING:
This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

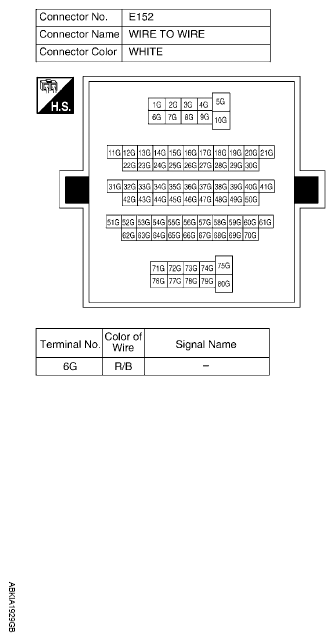

Fig 1: NVIS Connector End View (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

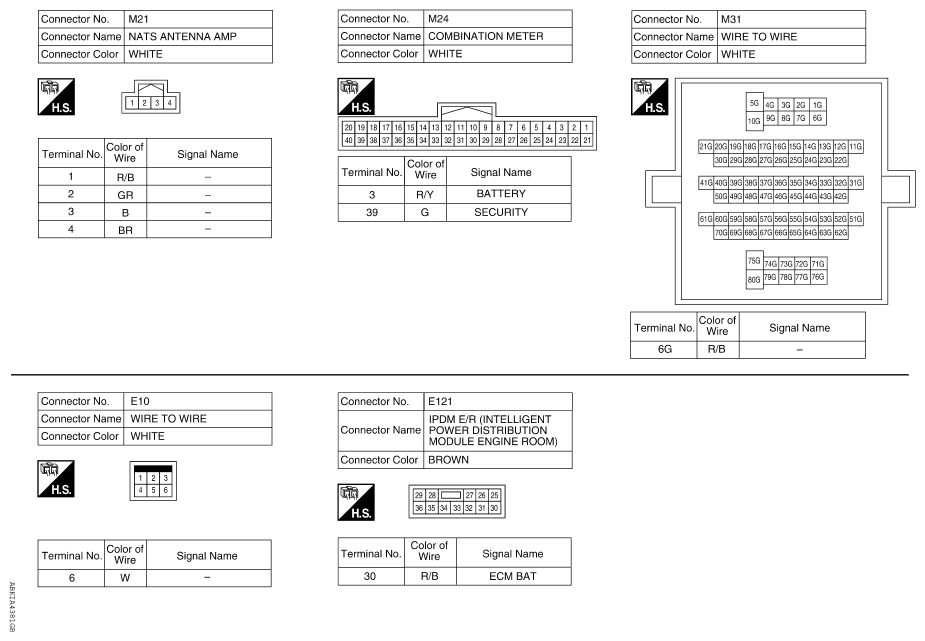

Fig 2: NVIS Connector End View (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

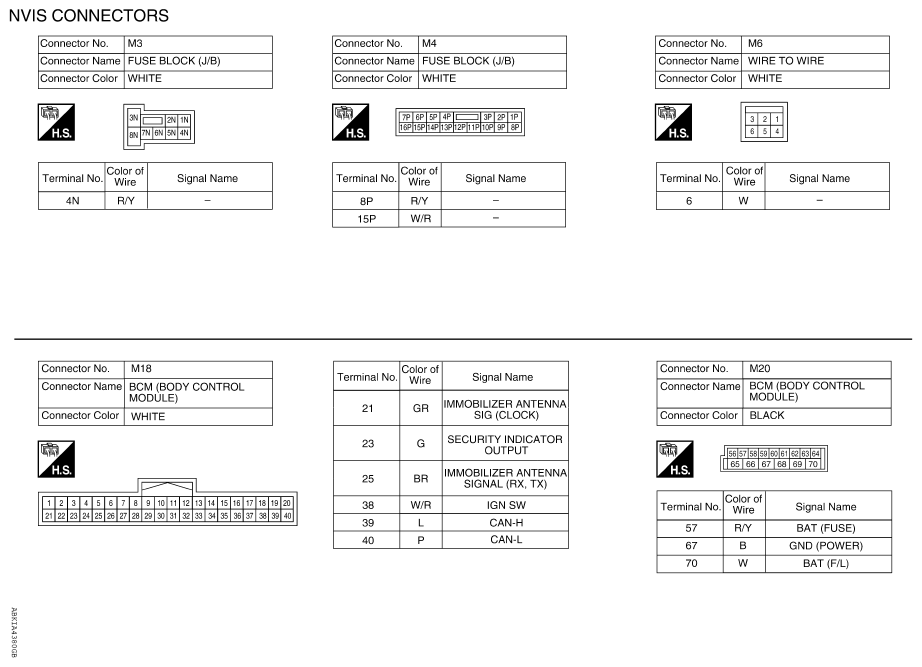

Fig 3: NVIS Connector End View (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
