Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Using a suitable tool, release the metal clip and pawls, then lift the main power window and door lock/unlock switch (1) from the front door finisher (LH).

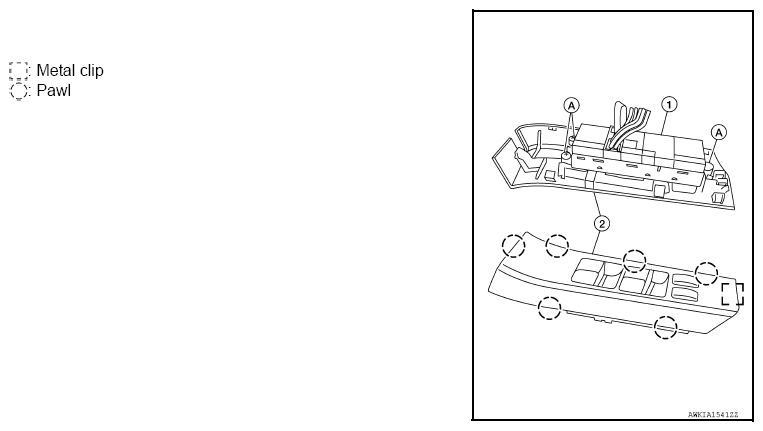

Fig 1: Identifying Power Window And Door Lock Switch Fixing Pawls And Metal Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connectors, then remove the assembly from the door finisher.
Remove the three screws (A) from the main power window and door lock/unlock switch (1), then separate it from the finisher (2).
