Exploded View

WARNING: This page is about a different car, the 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "COMPONENTS " for symbols in the figure.

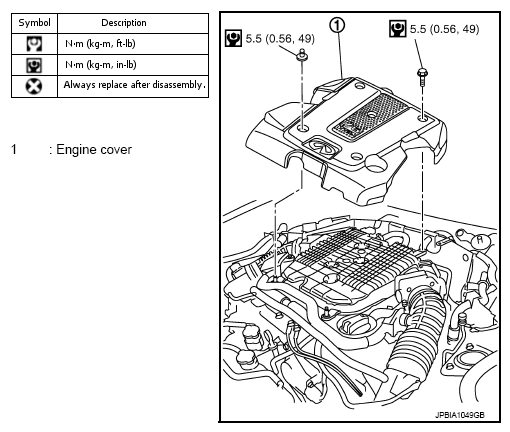

Fig 1: Engine Cover And Bolt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
