Exploded View

WARNING: This page is about a different variant/trim than selected.

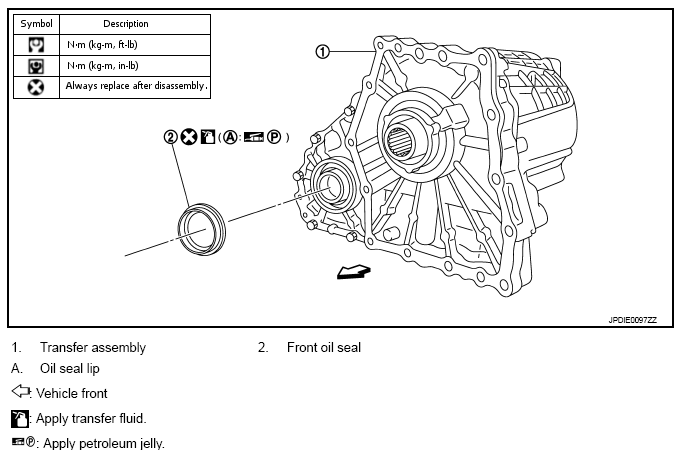

Fig 1: Identifying Transfer Assembly And Front Oil Seal

G08648189

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
