Door Lock/Unlock Inoperative With Intelligent Key (ITB12-005)
Publication date: 2012-02-03Reference number: ITB12-005
DOOR LOCK/UNLOCK INOPERATIVE WITH INTELLIGENT KEY
TECHNICAL SERVICE BULLETIN
Reference Number(s): ITB12-005, Date of Issue:
February 3, 2012
| INFINITI: | All 2007 and newer Infiniti with Intelligent Key system |
| Classification: | EL12-008 |
| APPLIED VEHICLES: | All 2007 and newer Infiniti with Intelligent Key system |
SERVICE INFORMATION
If the doors will not lock/unlock using the Intelligent Key buttons and/or the Door Request Switch; before replacing any component:
- Review the door look/unlock Diagnostic Items in this bulletin, and
- Follow all diagnostic steps in the appropriate Service Manual.
NOTE:
The Intelligent Key door lock/unlock functions are controlled by several components. Proper diagnostic steps should be performed before replacing any part. The BCM (Body Control Module) is usually not the cause
of an inoperative condition.
DIAGNOSTIC ITEMS
NOTE:
When testing door lock/unlock with Intelligent Key:
- Set the ignition switch position to OFF or LOCK.
- Put the shift lever in Park.
- Intelligent key is not inserted into key slot (if equipped).
- All doors are closed.
- Intelligent key is outside the vehicle and 6 feet or less from the request switch.

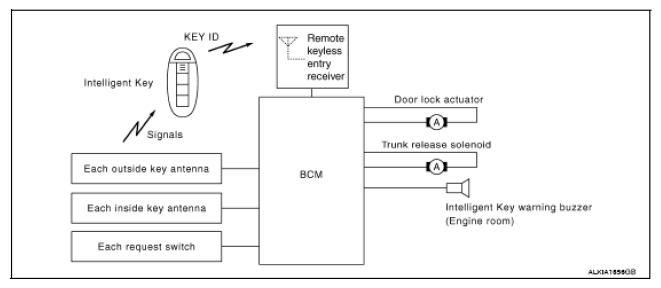

- As needed, refer to EXAMPLE OF THE INTELLIGENT KEY DOOR LOCK/UNLOCK SYSTEM .
Check operation of the door locks with the power door lock switch.
- If a door will lock/unlock with the power door lock switch on the inside door panel, then the actuator is OK and the wiring between the actuator and BCM is OK.
- If needed, refer to the appropriate Service Manual to diagnose and repair the power door lock system.

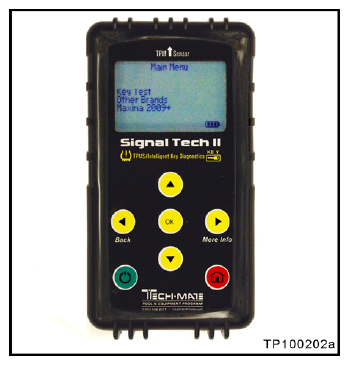

Check signals from the Intelligent Key and the vehicle antenna using Signal Tech II.
- Follow the Signal Tech II instruction manual for Intelligent Key Testing.
- The Signal Tech II instruction manual is found in ASIST under Tools & Equipment.
Correct any no-signal or low-signal conditions:
- If there is no-signal or low-signal from the Intelligent Key, inspect the Intelligent Key and its battery
.
- Refer to ITB08-051 INTELLIGENT KEY INOPERATIVE for intelligent key inspection.
- Refer to the appropriate Service Manual for battery test procedure.
- Intelligent Key battery voltage must be above 2.8 volts.
- If the battery voltage is OK, replace the Intelligent Key.
- If there is no-signal or low-signal from the outside door handle antenna, check the antenna.
- Refer to the appropriate Service Manual for antenna diagnostic and repair procedure.
Confirm The BCM Is Receiving Door Lock/Unlock Signals

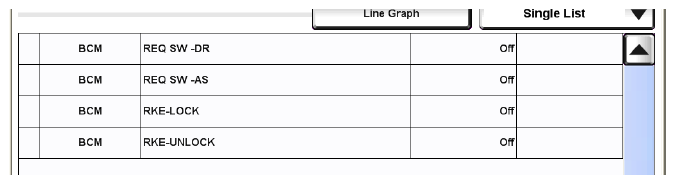

- Use C-III or C-III plus > Intelligent Key > Data Monitor.
- REQ SW -DR/AS will change OFF > ON as Door Request Switch is pressed.
- RKE - LOCK/UNLOCK will change OFF > ON as the buttons on the Intelligent Key (keyfob) are pressed.
NG - Repair as needed. Refer to the appropriate Service Manual
NOTE:
The Remote Keyless Entry Receiver must confirm the NATS/Intelligent Key is registered before the doors will lock/unlock with Request Switch or the Intelligent Key (keyfob) buttons.
