4WAS SYSTEM: Component Parts Location
4WAS SYSTEM: Component Parts Location

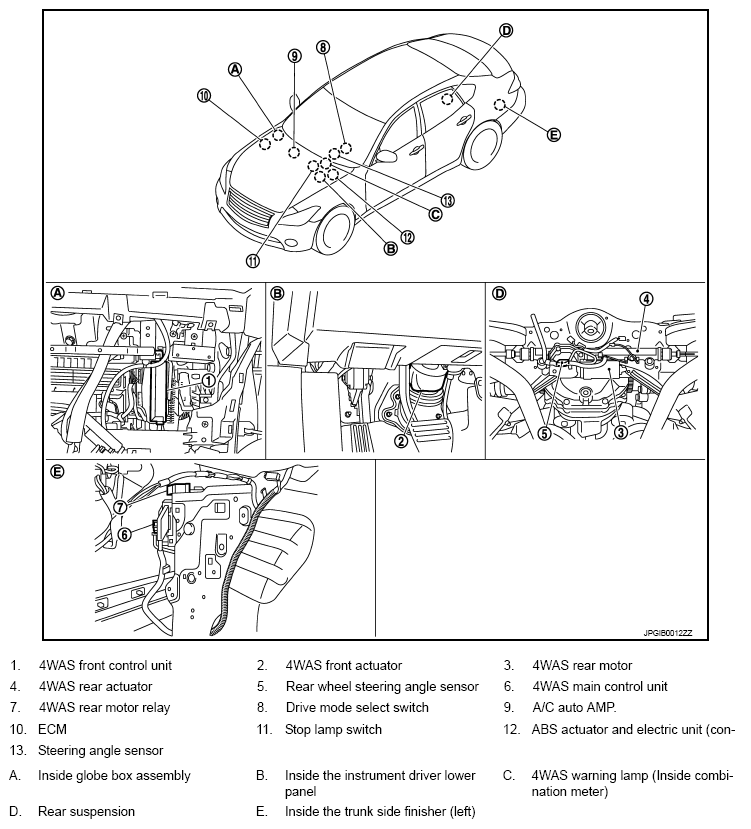

Fig 1: EPS System Component Parts Location (4WAS System)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
