Steering Control System (With 4WAS)
›
System Description
›
System
›
4WAS System
›
4WAS SYSTEM: Sectional View
4WAS SYSTEM: Sectional View

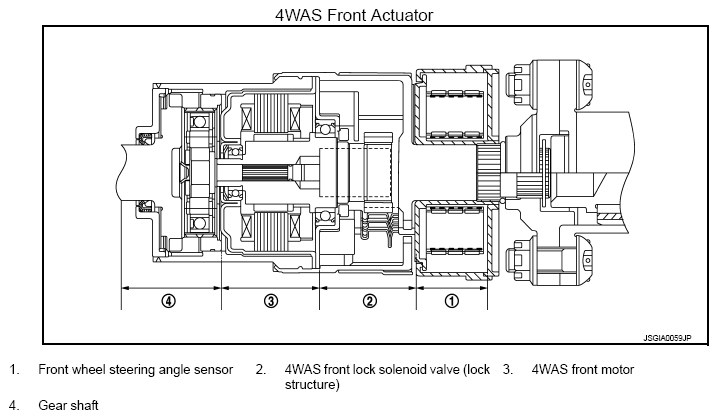

Fig 1: Sectional View Of Front Actuator (4WAS System)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Sectional View Of Rear Actuator (4WAS System)
Courtesy of NISSAN NORTH AMERICA, INC.
