2WD: Exploded View: VQ37VHR

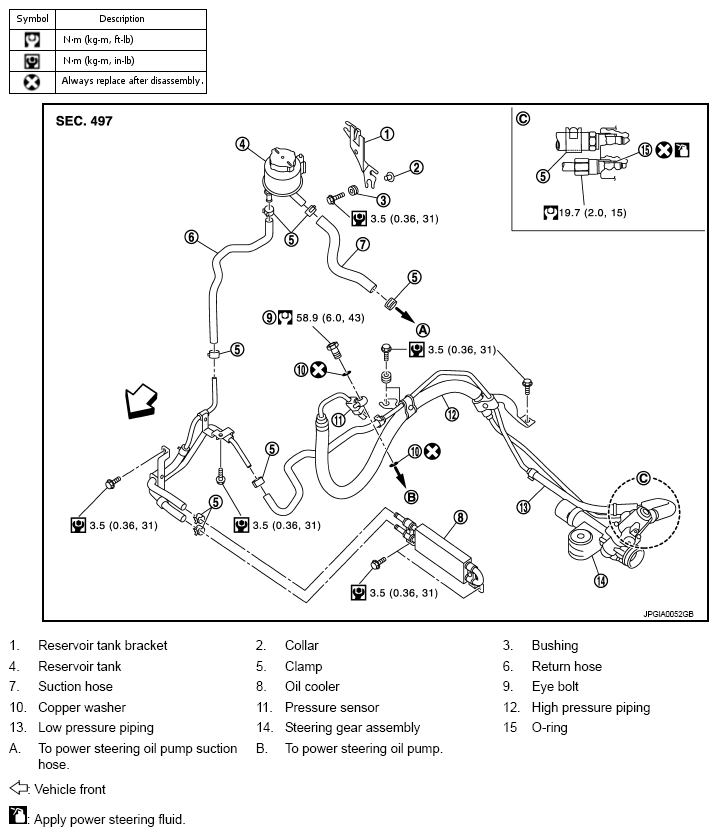

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications - Without 4WAS (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

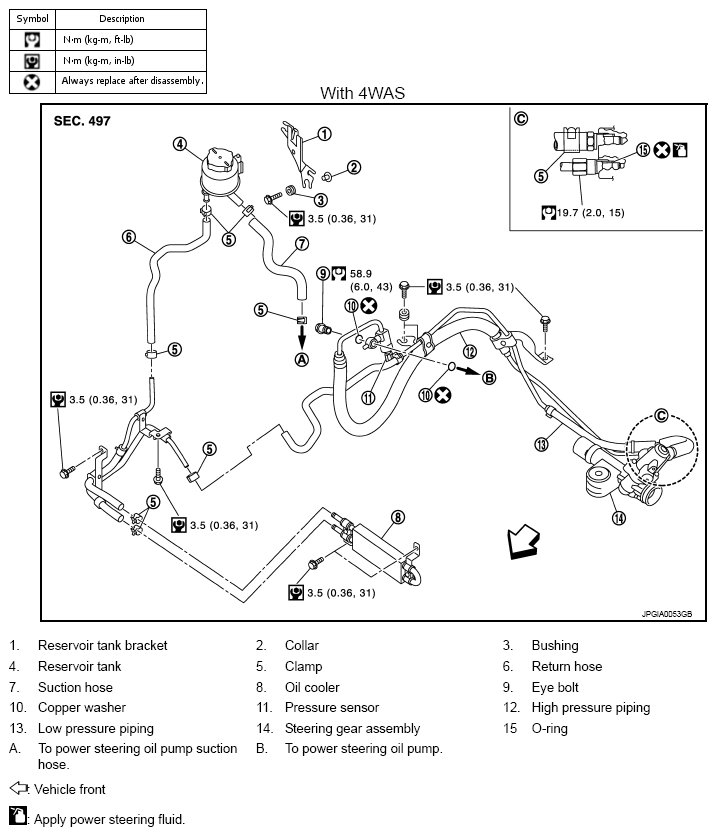

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications - With 4WAS (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
