WITH 4WAS: Exploded View
WITH 4WAS: Exploded View

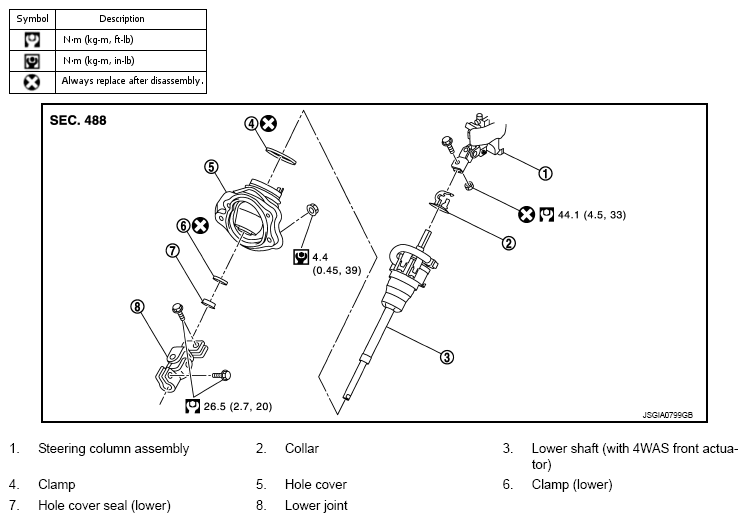

Fig 1: Exploded View Of Lower Steering Shaft With Torque Specifications (With 4WAS)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
