WITHOUT 4WAS: Exploded View

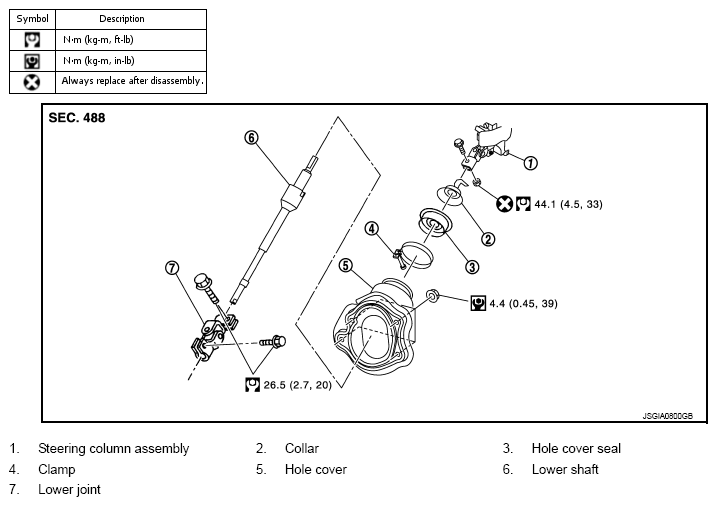

Fig 1: Exploded View Of Lower Steering Shaft With Torque Specifications (Without 4WAS)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
