Under Drive Carrier, Front Brake Hub: Assembly

Install snap ring (1) to front brake hub.
CAUTION: Be careful not to damage snap ring.

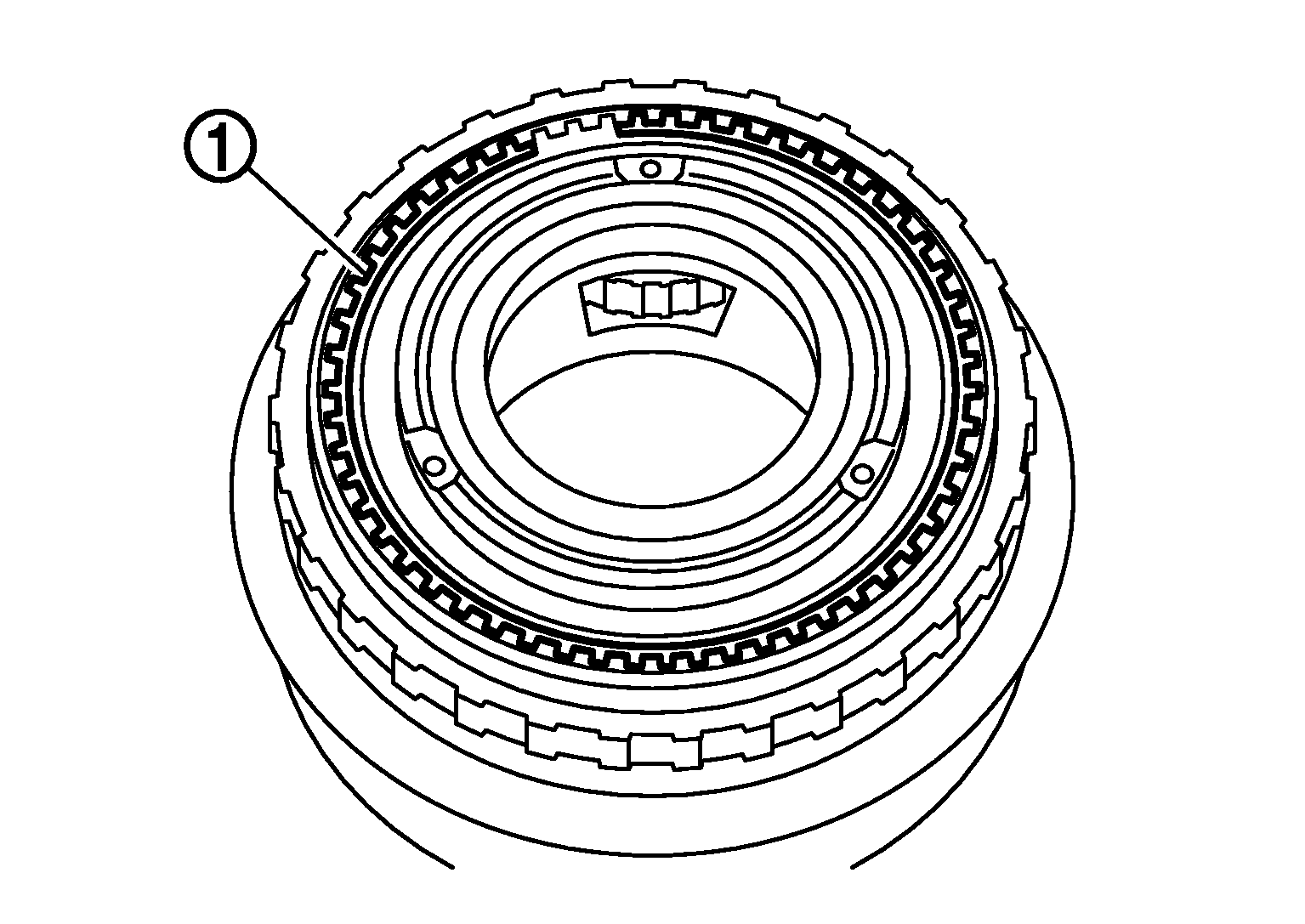

Fig 1: Identifying Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install under drive carrier assembly (1) to front brake hub.

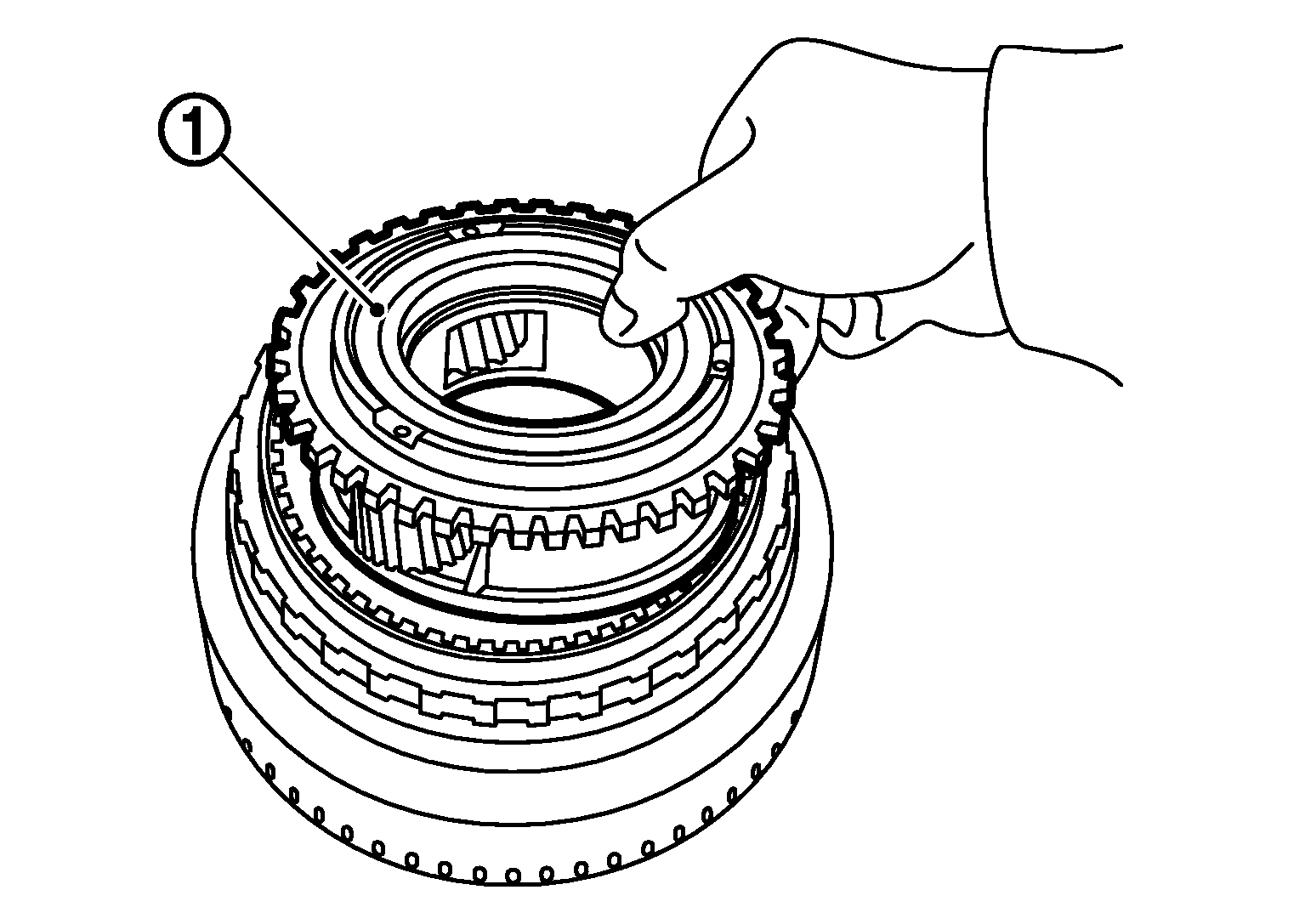

Fig 2: Installing Under Drive Carrier Assembly To Front Brake Hub
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring (1) to front brake hub using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch front brake hub.
- Be careful not to damage snap ring.

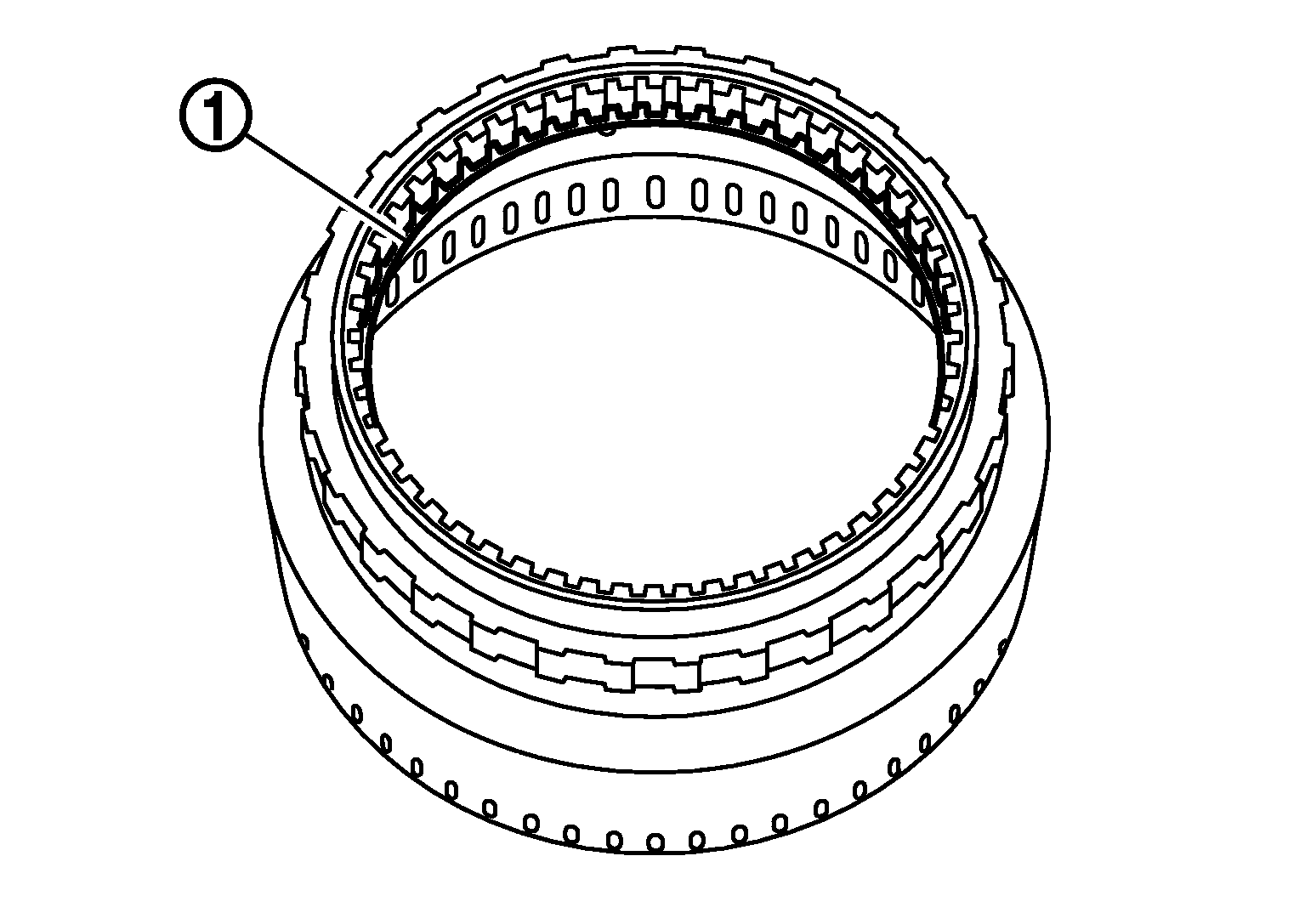

Fig 3: Identifying Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
