Engine Control System - Introduction
›
System Description
›
System
›
Electric Ignition System
›
ELECTRIC IGNITION SYSTEM: System Diagram
ELECTRIC IGNITION SYSTEM: System Diagram

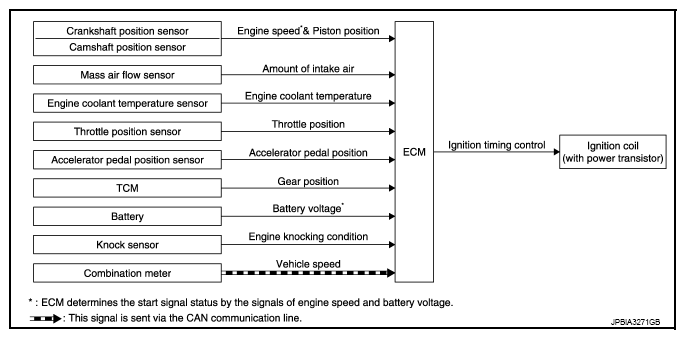

Fig 1: Identifying Electric Ignition System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
