Quick Connector

CAUTION:

After connecting fuel tube quick connectors, check quick connectors are secure.

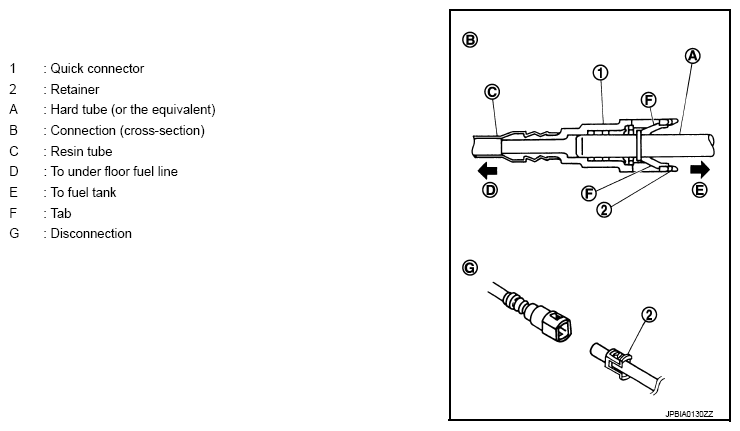

Fig 1: Identifying Quick Connectors
Courtesy of NISSAN NORTH AMERICA, INC.
Ensure that connector and resin tube never contact any adjacent parts.
