AIR CONDITIONING CUT CONTROL: System Diagram
AIR CONDITIONING CUT CONTROL: System Diagram

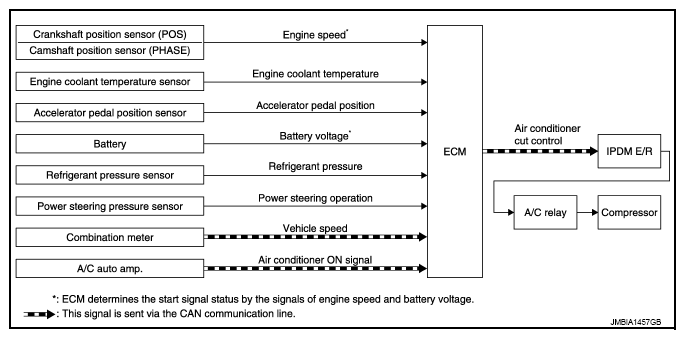

Fig 1: Identifying Air Conditioning Cut Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
