Switches And Their Control Functions

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For LH/RH independent temperature and air outlet adjustment function, construction indicated by broken line as shown in the figure below is divided to driver side and passenger side by divider plate.

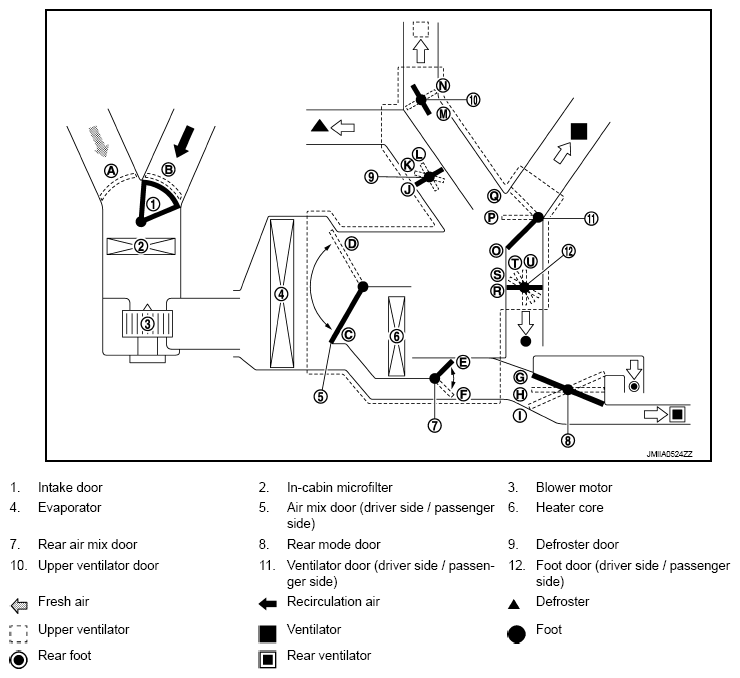

Fig 1: Switch Control Functions Operation Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

With Forest Air

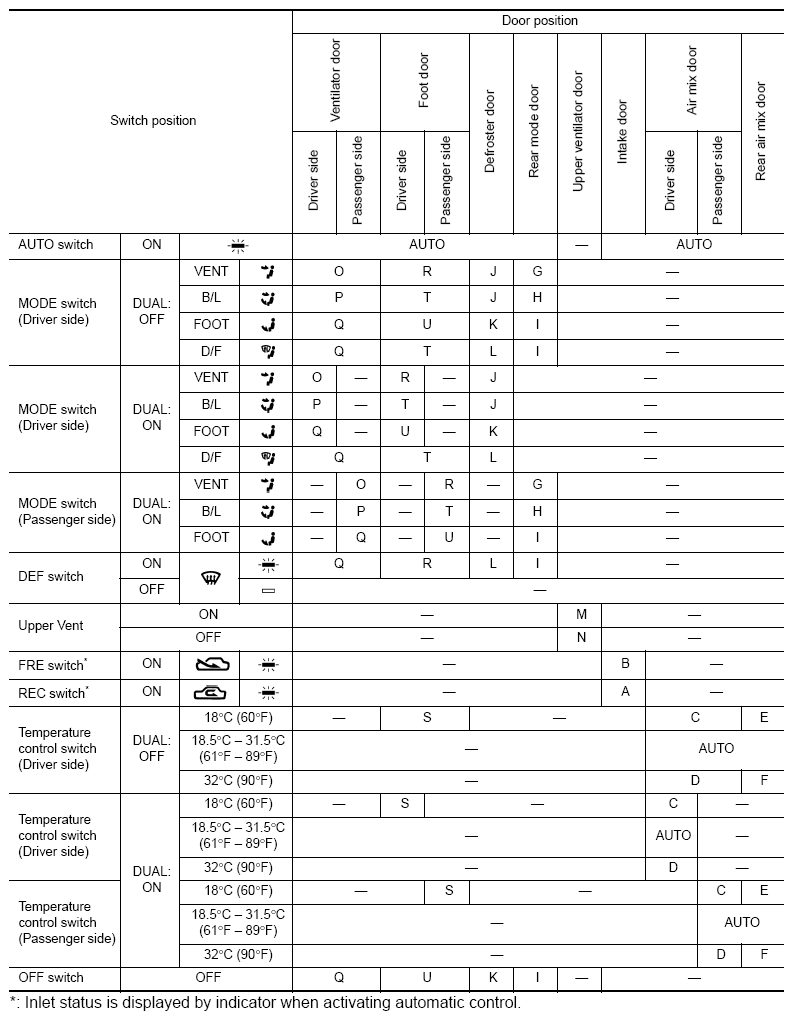

Fig 2: Switch Control Function Chart (With Forest Air)

Courtesy of NISSAN NORTH AMERICA, INC.

Without Forest Air

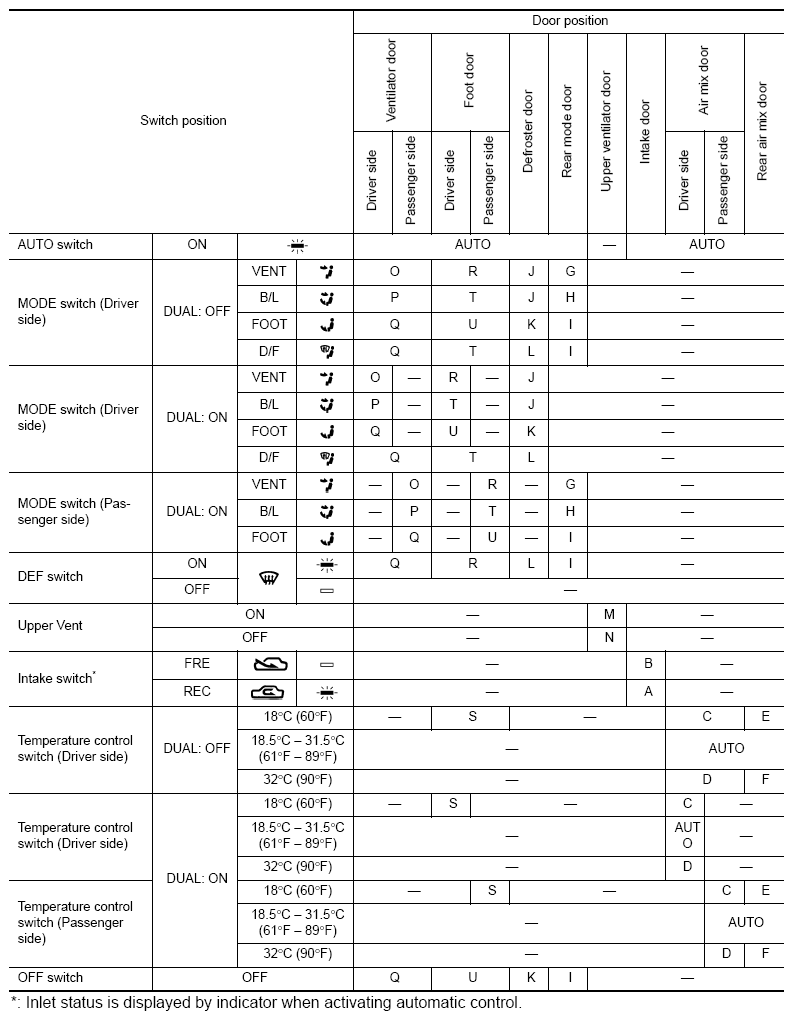

Fig 3: Switch Control Function Chart (Without Forest Air)

Courtesy of NISSAN NORTH AMERICA, INC.
