MEMORY FUNCTION: System Diagram
MEMORY FUNCTION: System Diagram

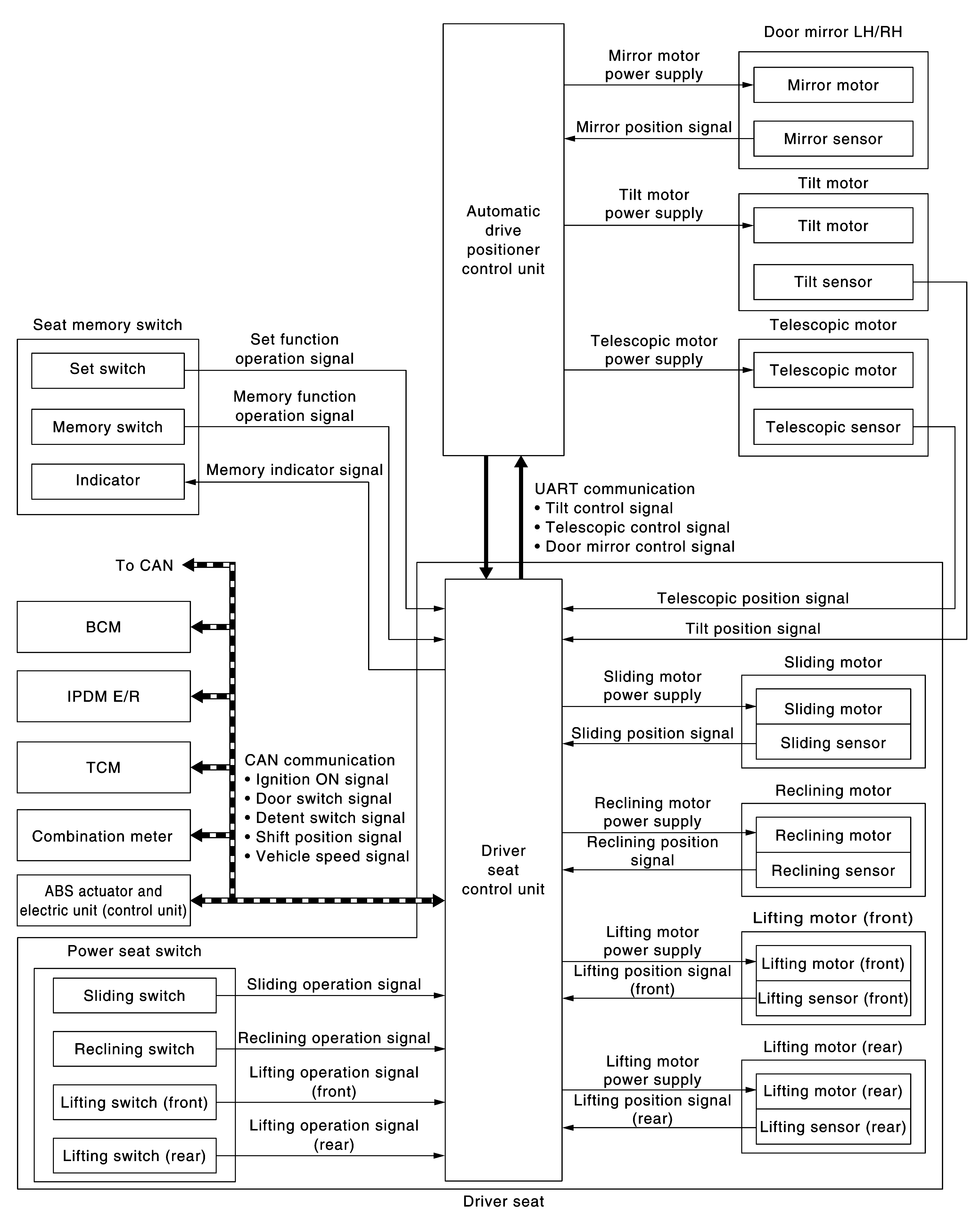

Fig 1: Memory Function - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
