Climate Controlled Seat

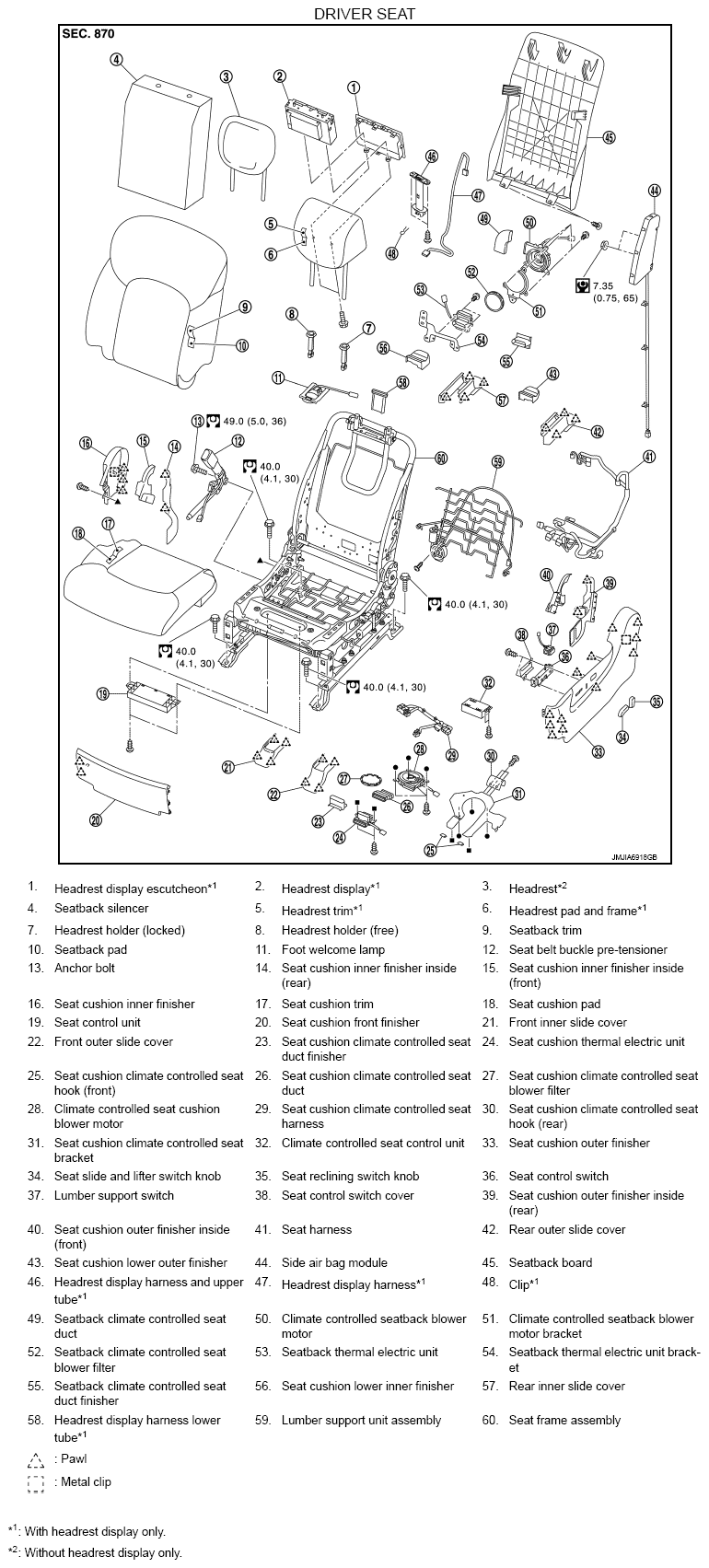

Fig 1: Exploded View Of Climate Controlled Seat (Driver Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

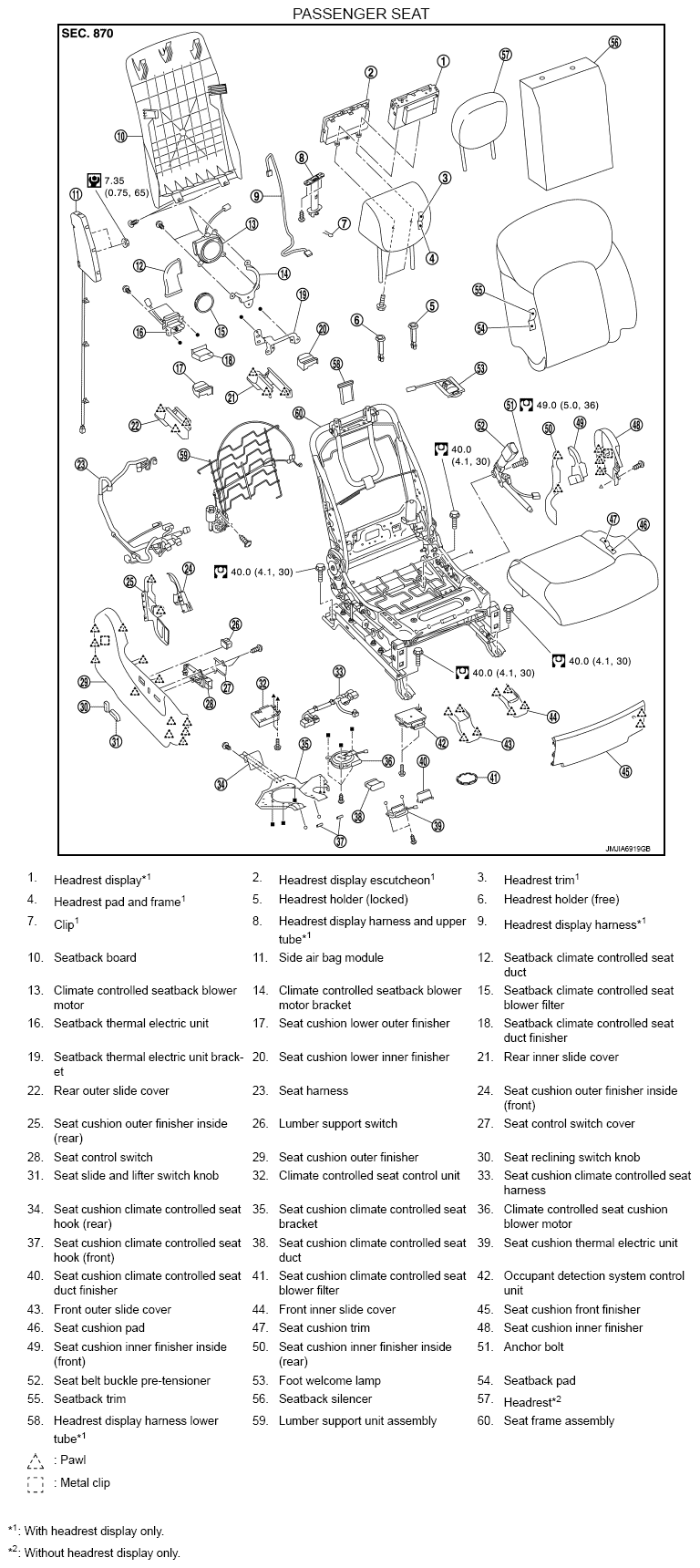

Fig 2: Exploded View Of Climate Controlled Seat (Passenger Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
