Brake Control System (Intelligent Brake Assist)
›
System Description
›
Component Parts
›
Component Parts Location
Component Parts Location

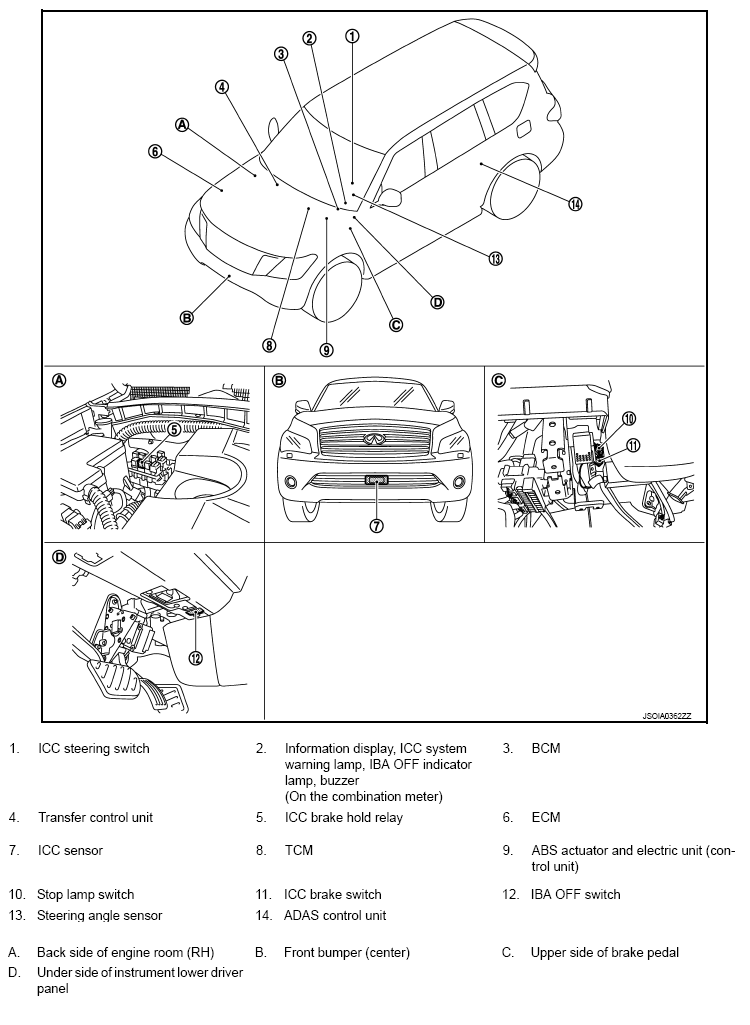

Fig 1: Brake Control System (Intelligent Brake Assist) Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
