System - Engine Mechanical & Other

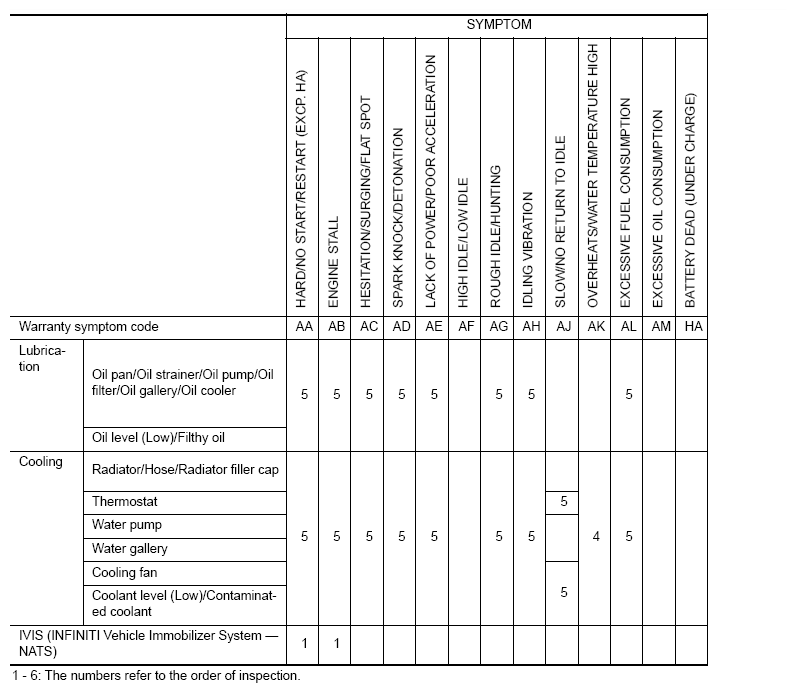

Fig 1: Engine Mechanical & Other System Symptoms Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

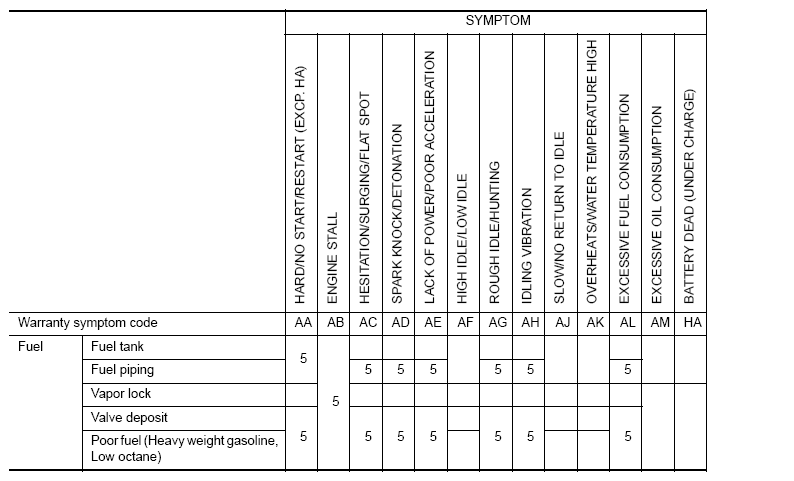

Fig 2: Engine Mechanical & Other System Symptoms Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

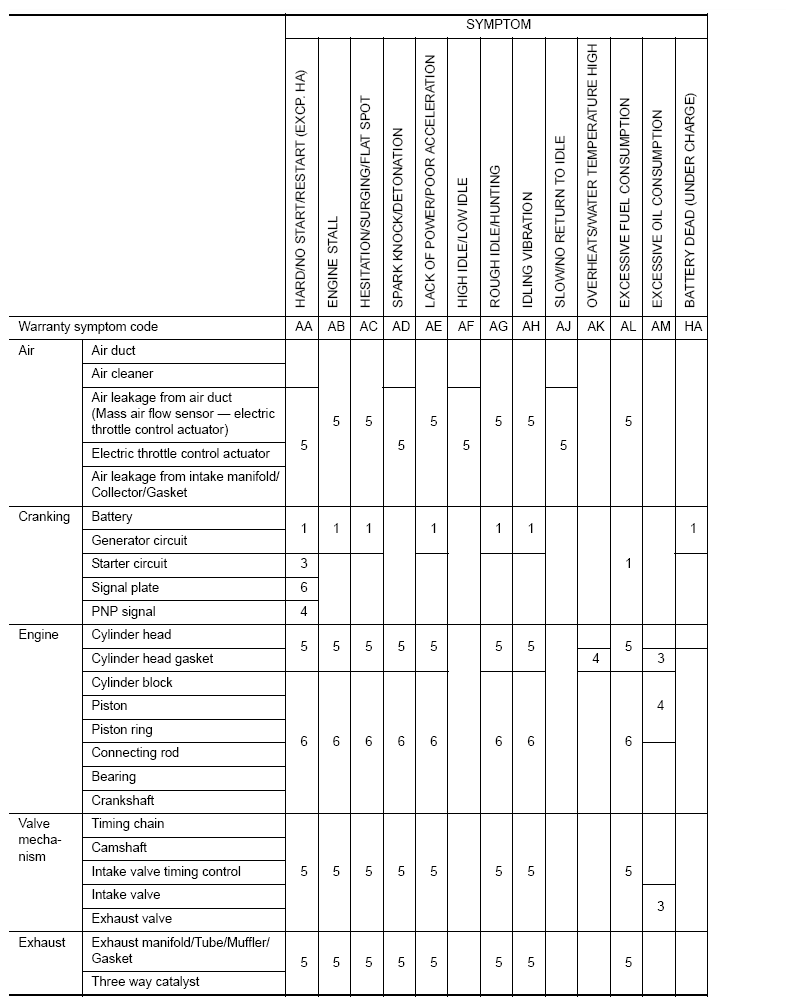

Fig 3: Engine Mechanical & Other System Symptoms Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
