Engine Control System - Periodic Maintenance And Removal And Installation
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Engine Mechanical&Other
System - Engine Mechanical&Other

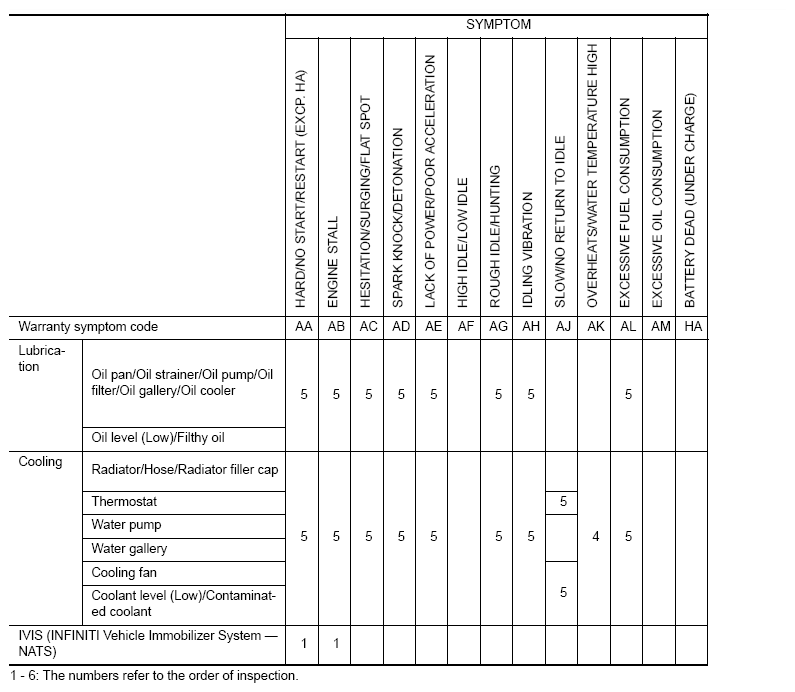

Fig 1: Engine Mechanical & Other System Symptoms Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

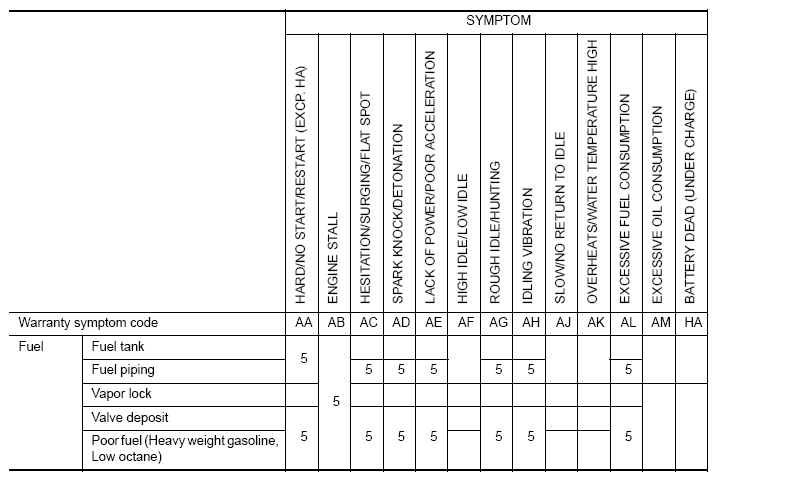

Fig 2: Engine Mechanical & Other System Symptoms Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

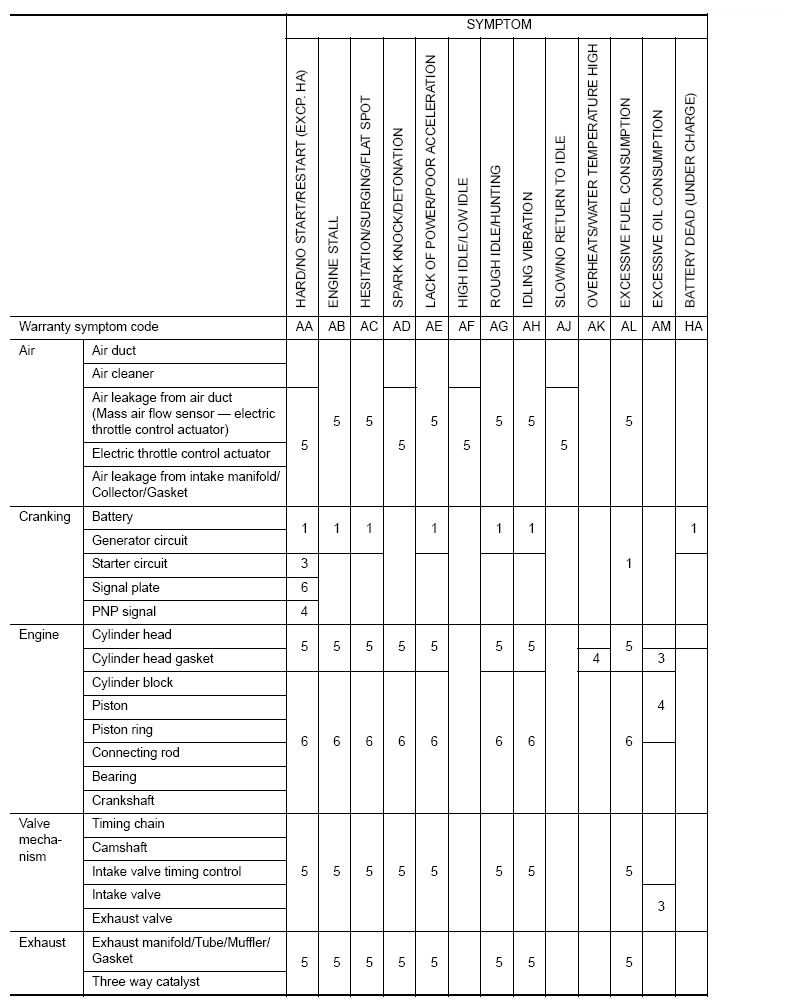

Fig 3: Engine Mechanical & Other System Symptoms Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
